Link 140 Bar Pressure Sensor (HPS)

Link 140 Bar Pressure Sensor (HPS)

Available from JDM Mods NQ, the Link 140 Bar Pressure Sensor (HPS) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0186

Warnings

• Suitable for liquid pressure measurement only.
• Up to 2030 PSI above atmospheric pressure, cannot be used to read vacuum.
• Install with the pressure tube pointing downwards (0deg to +/-90deg from vertical).

Highights

• Pressure range: 0-140 Bar (2030psi)
• M10 x 1 threaded fitting
• 45deg cone seat

Product Dimensions

• 50mm(L)x30mm(W)x30mm(H)
• 1.97in(L)x1.18in(W)x1.18in(H)

Product Weight

• 40 grams (1.41 ounces)

Electrical

• Operating Voltage Range: 4.75-5.25V
• Maximum Input Voltage: 5.25V

What's in the Box

• Bosch Pressure Sensor for Liquid 140 bar

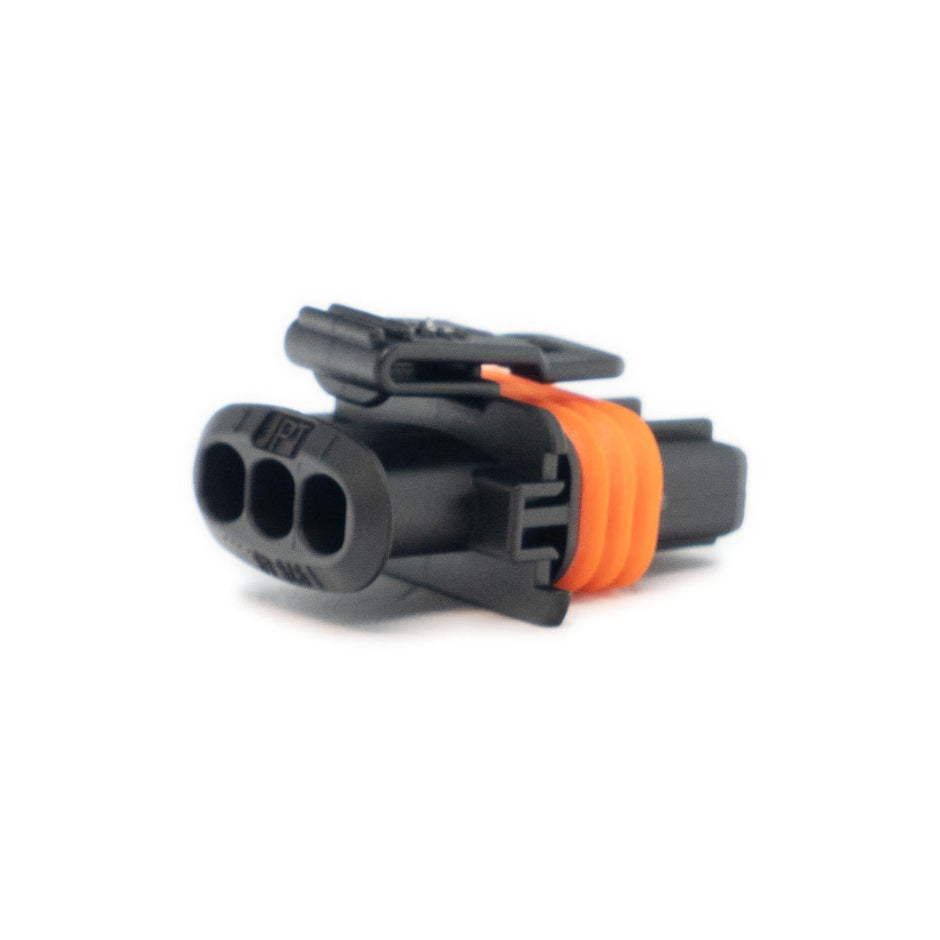

• Bosch Mating Connector 3-pin Compact for Pressure Sensor
• Printed Accessory instructions

PCLink Calibration Name

• "Bosch 140Bar 0 261 545 053"

Raw Calibration Specs

• 0.5V = 0kPa, 4.5V = 14000kPa

Connector

• Compact 3-pin

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Verify the measurement range, pressure reference, thread and supply voltage. Set the correct sensor calibration in the ECU and confirm leak-free mounting.
