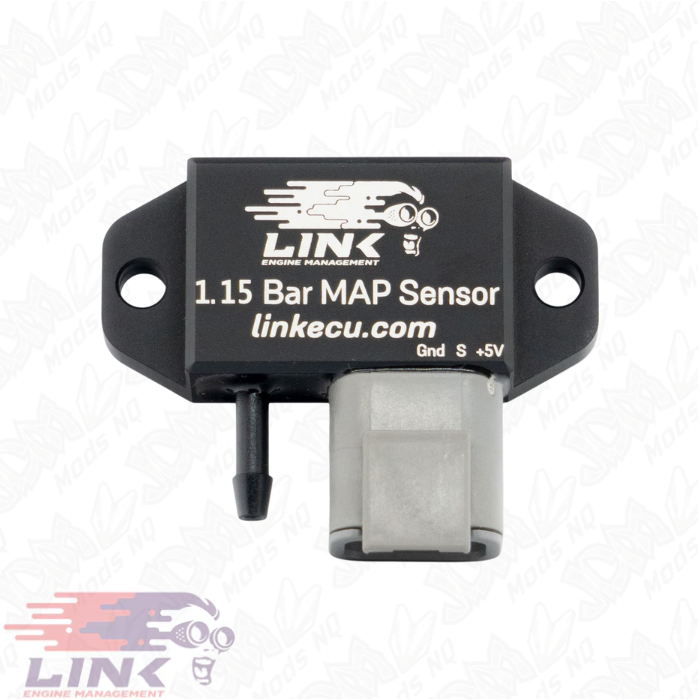

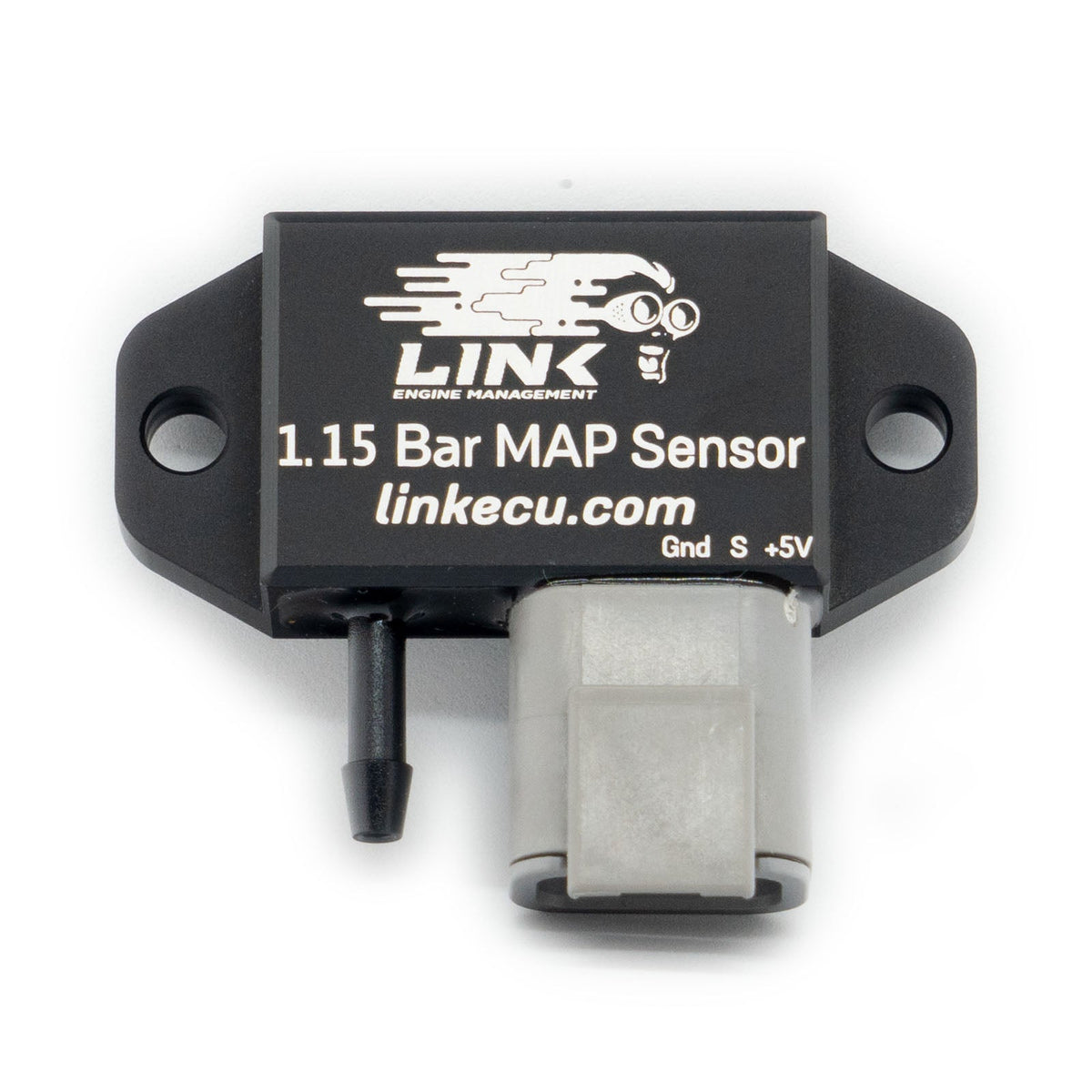

Link 1.15 Bar MAP Sensor (MAP1.15)

Link 1.15 Bar MAP Sensor (MAP1.15)

Available from JDM Mods NQ, the Link 1.15 Bar MAP Sensor (MAP1.15) is a measurement component for a compatible engine-management installation. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0162

Models Supported

• All Link ECUs.
• Other aftermarket ECUs with analogue MAP sensor inputs.
• Applications up to 2 psi (0.15 bar) positive intake pressure.

Important

• Mount the sensor higher than the intake manifold connection point.
• In PCLink, select "Link 1.15 Bar" as the MAP sensor type.
• Not recommended for forced induction vehicles.

Highlights

• Pressure range: 0-1.15 bar absolute.
• High-resolution pressure measurement.
• Compact aluminium enclosure.
• 4mm (3/16") hose barb connection.
• Two-bolt mounting design.
• Includes 3-pin Deutsch DTM connector kit.
• Wiring pinout marked on the sensor housing.
• Designed and manufactured by LinkECU.

Product Dimensions

• 60mm(L)x50mm(W)x20mm(H)
• 2.36in(L)x1.97in(W)x0.79in(H)

Product Weight

• 40 grams (1.41 ounces)

Electrical

• Operating Voltage Range: 4.75-5.25V
• Maximum Input Voltage: 5.25V
• Maximum Continuous Current Draw: 10mA

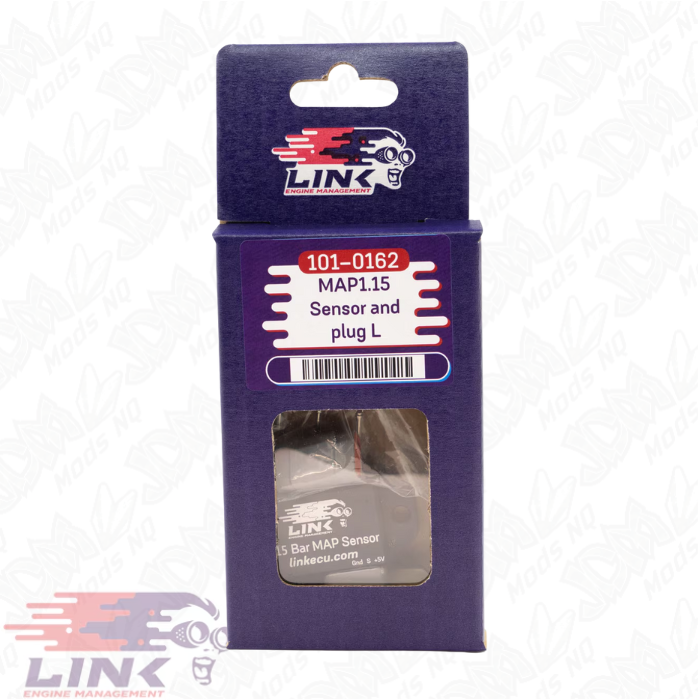

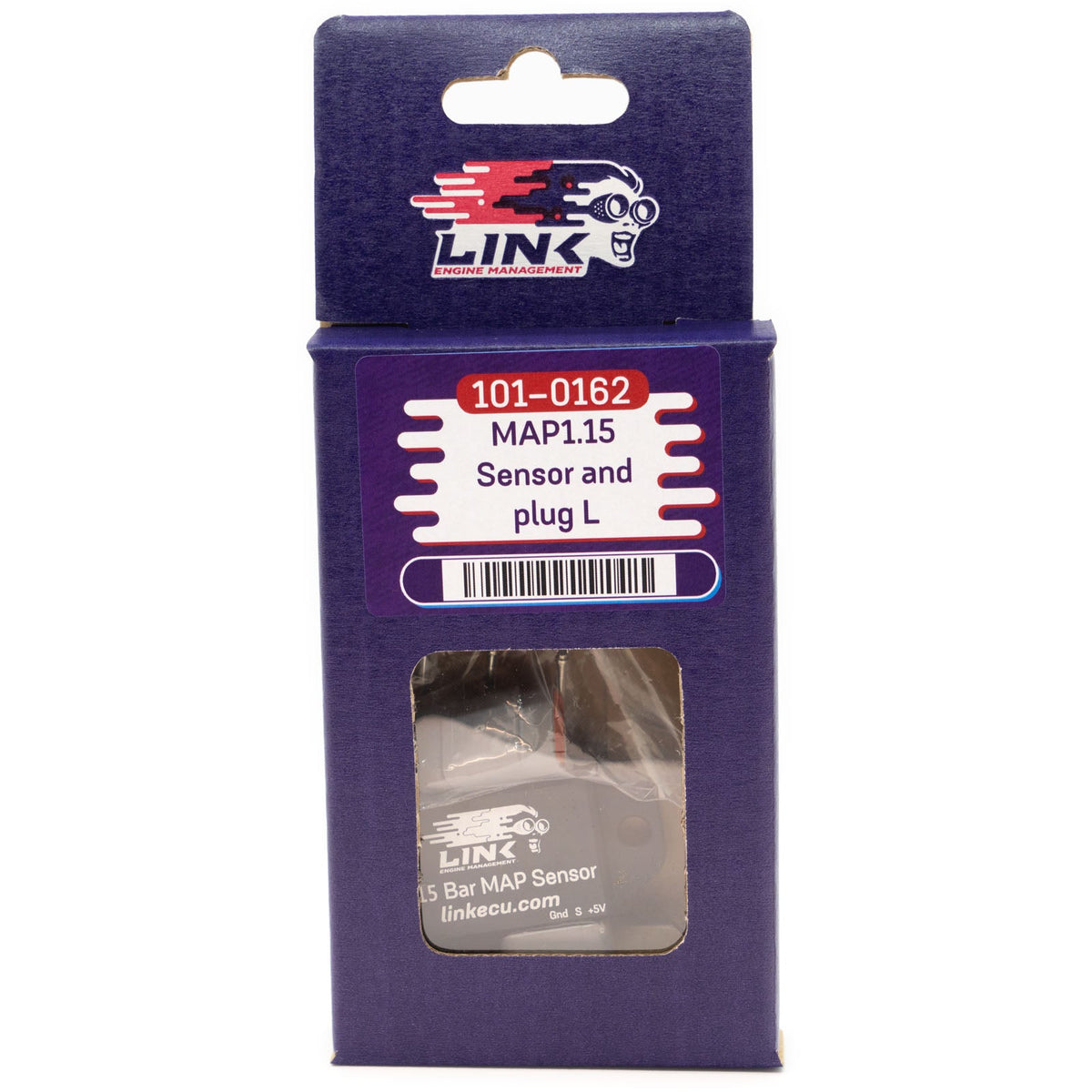

What's in the Box

• 1.15 Bar MAP Sensor

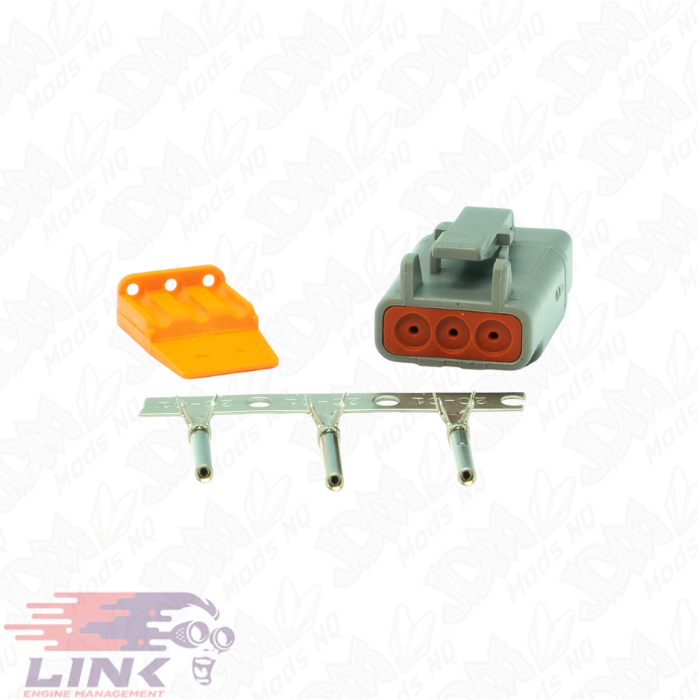

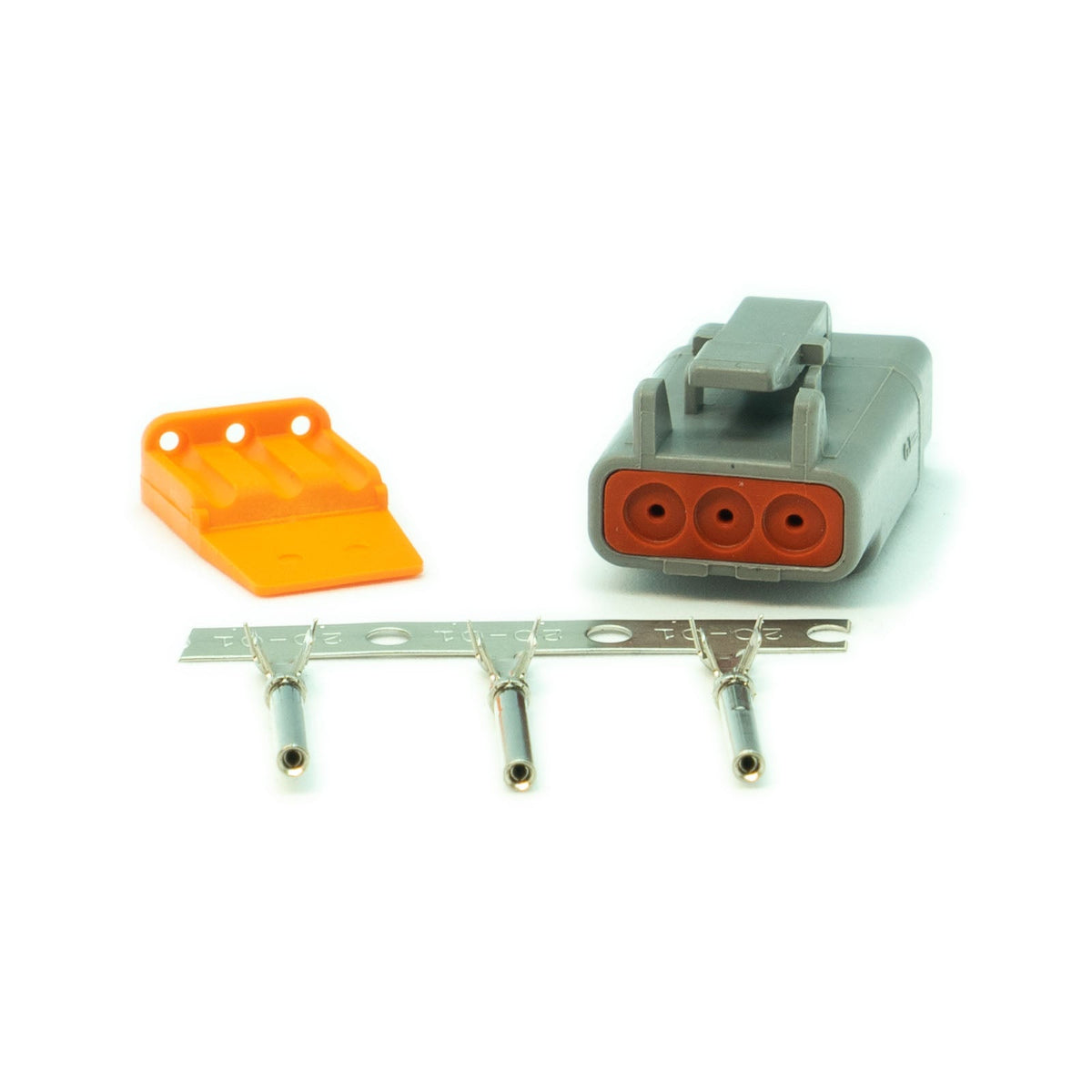

• Deutsch 3 Way Plug Kit

PCLink Calibration Name

• "Link 1.15 Bar"

Raw Calibration Specs

• 0.5V = 21.7kPa, 4.5V = 110kPa

Connector

• Deutsch 3 Way Plug Kit (PN 101-0128)

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Verify the measurement range, pressure reference, thread and supply voltage. Set the correct sensor calibration in the ECU and confirm leak-free mounting.
