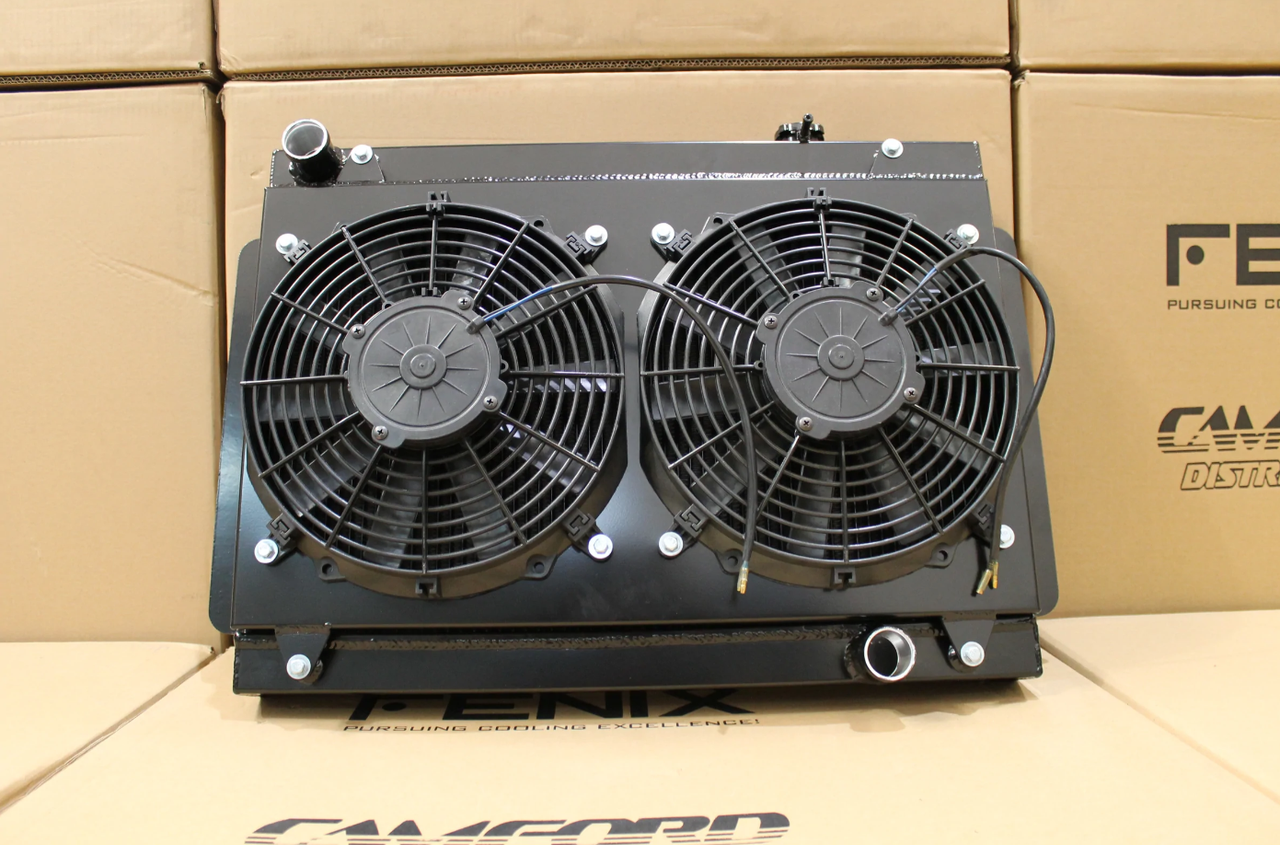

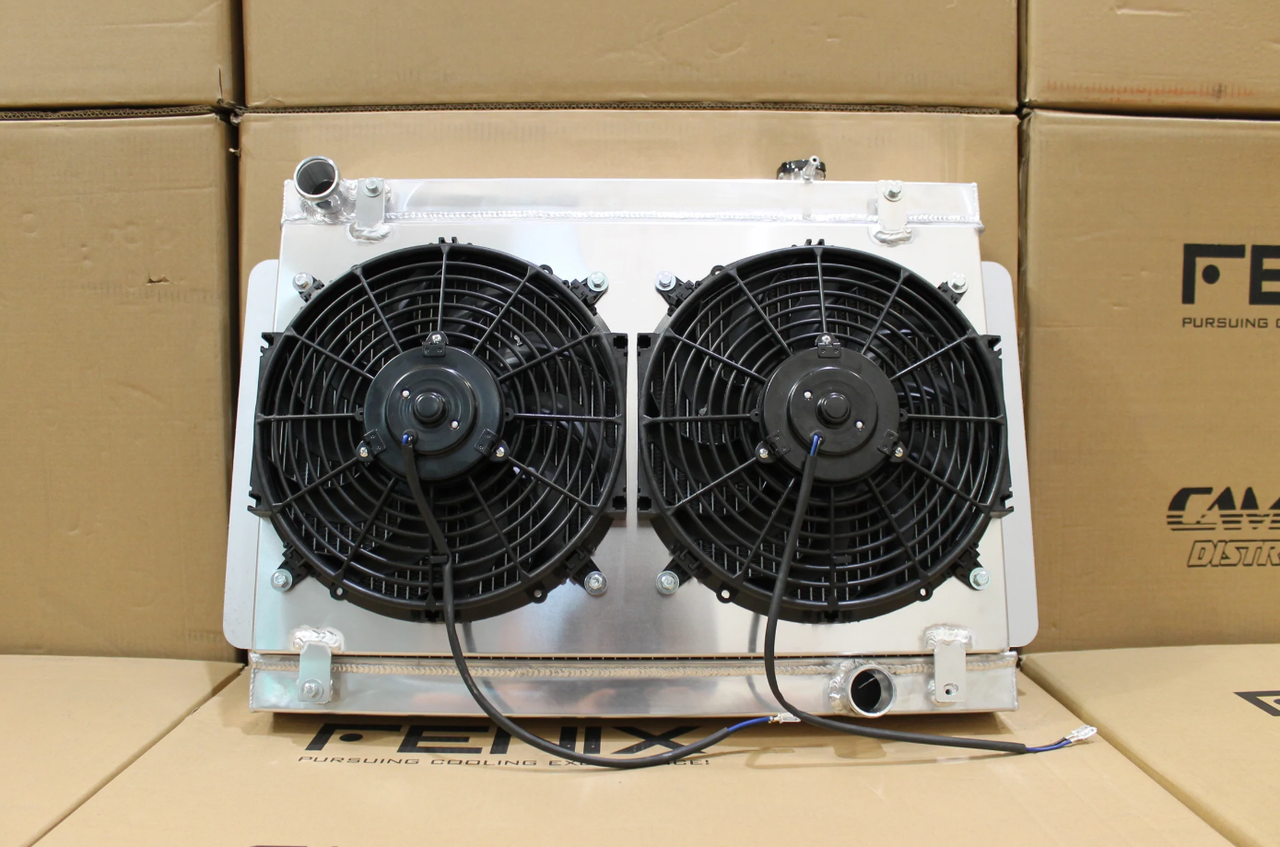

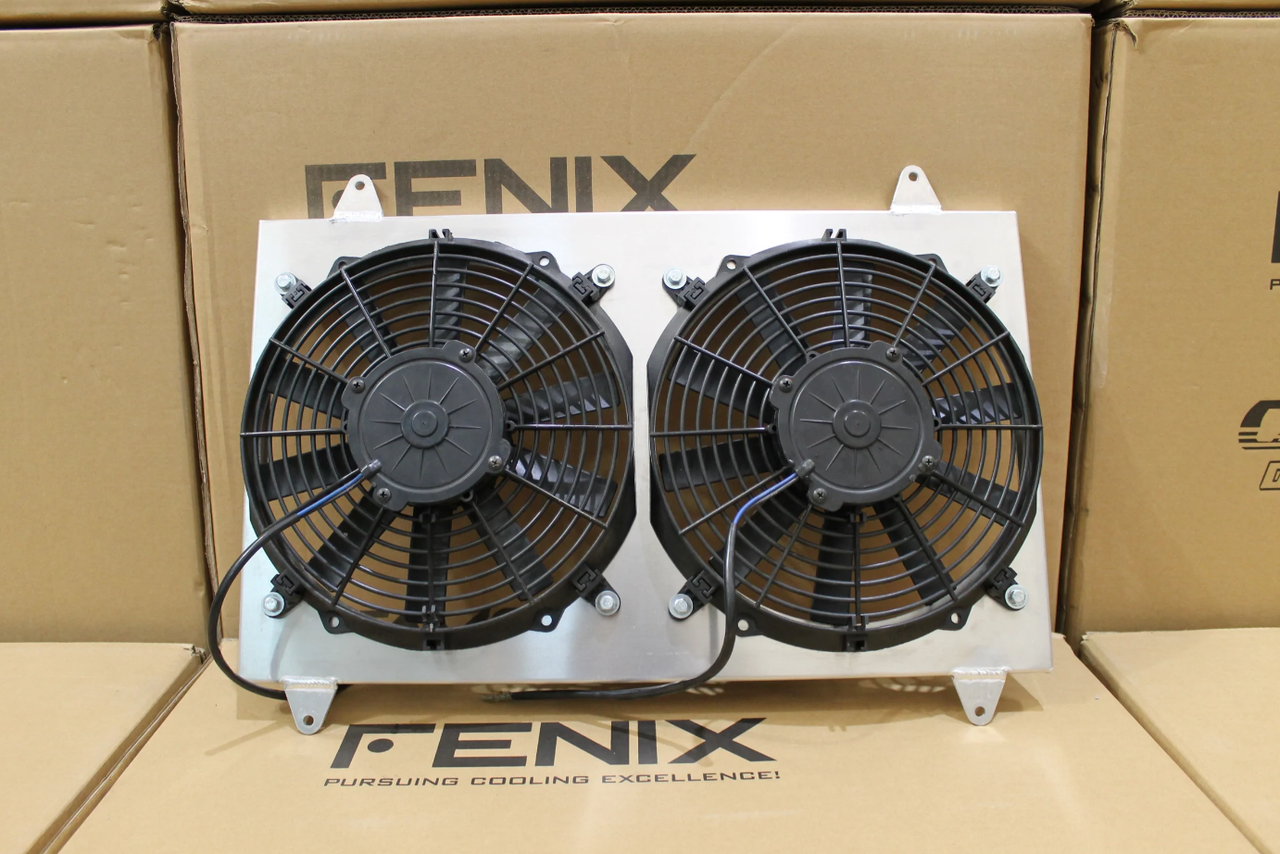

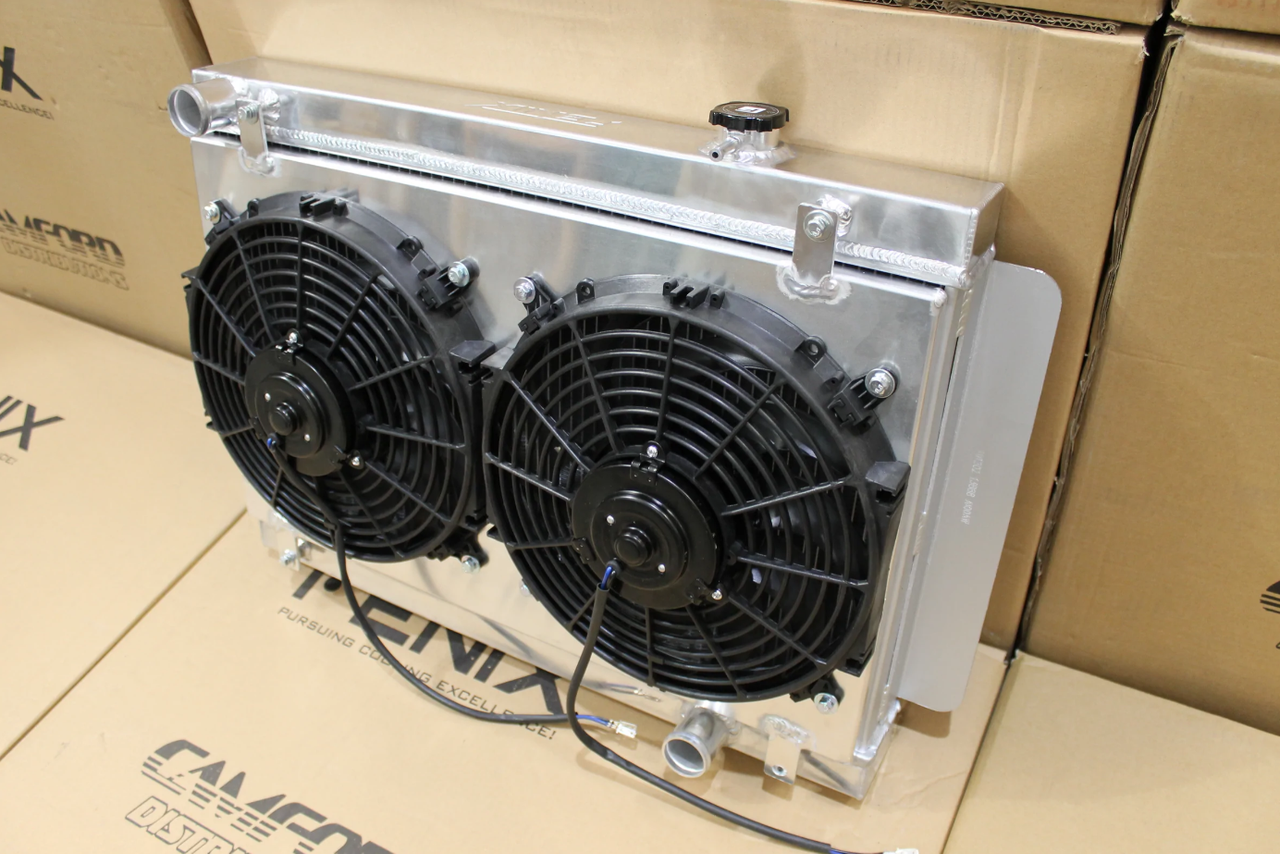

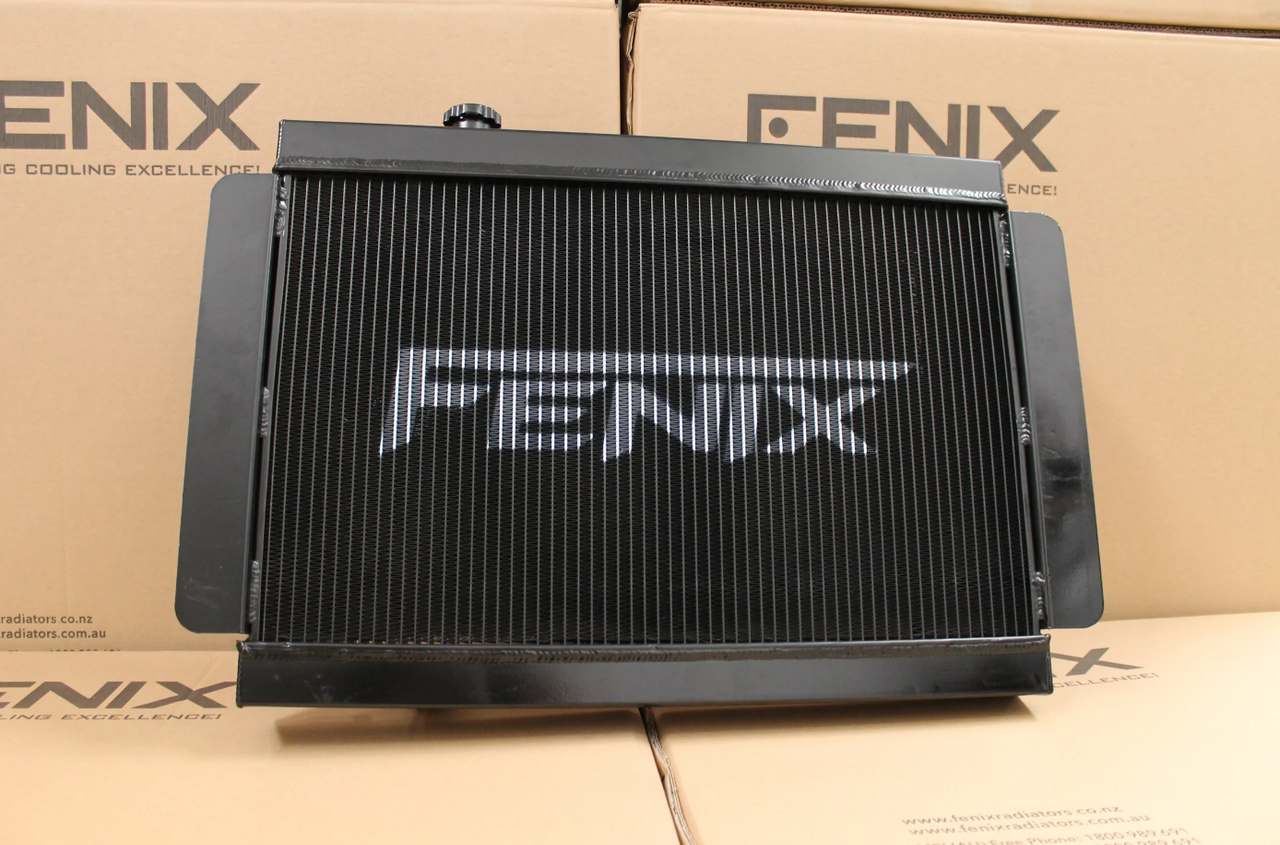

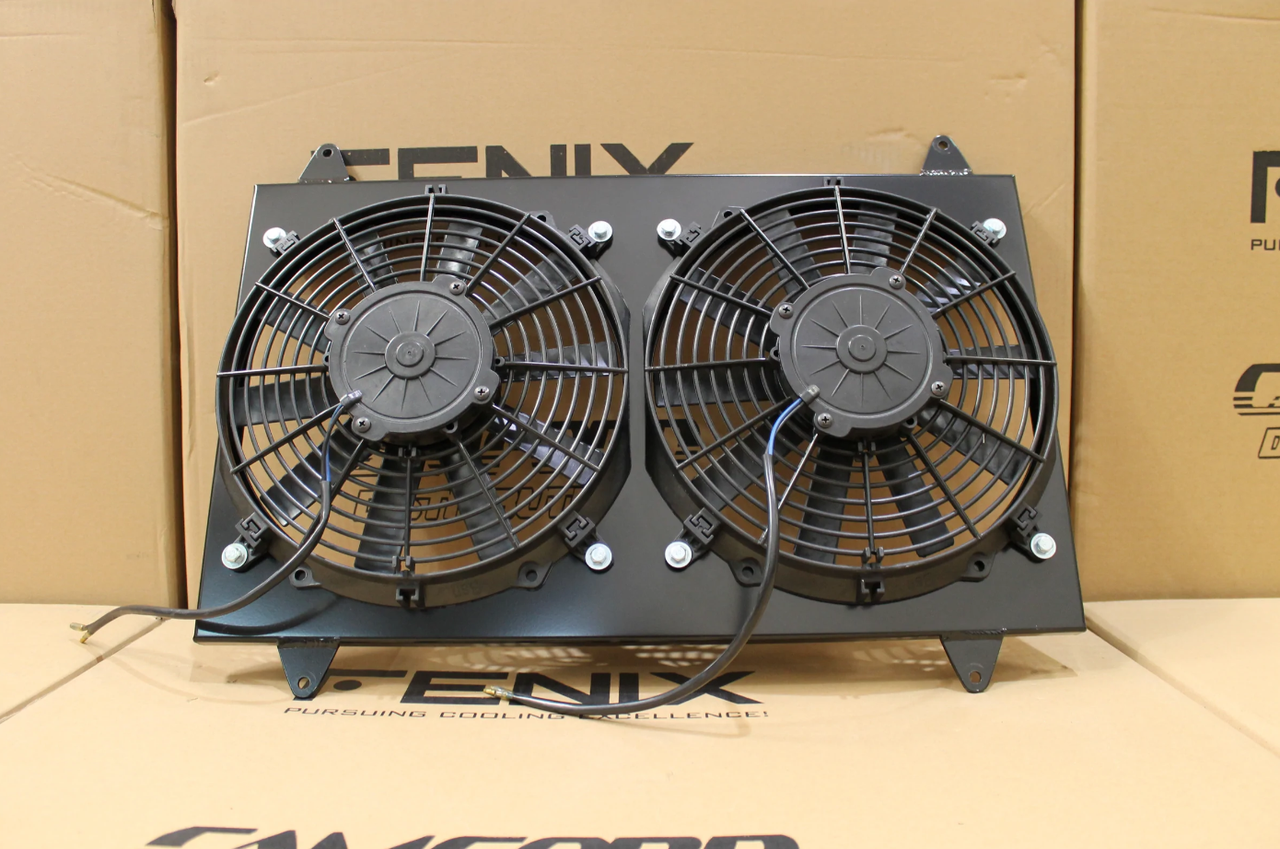

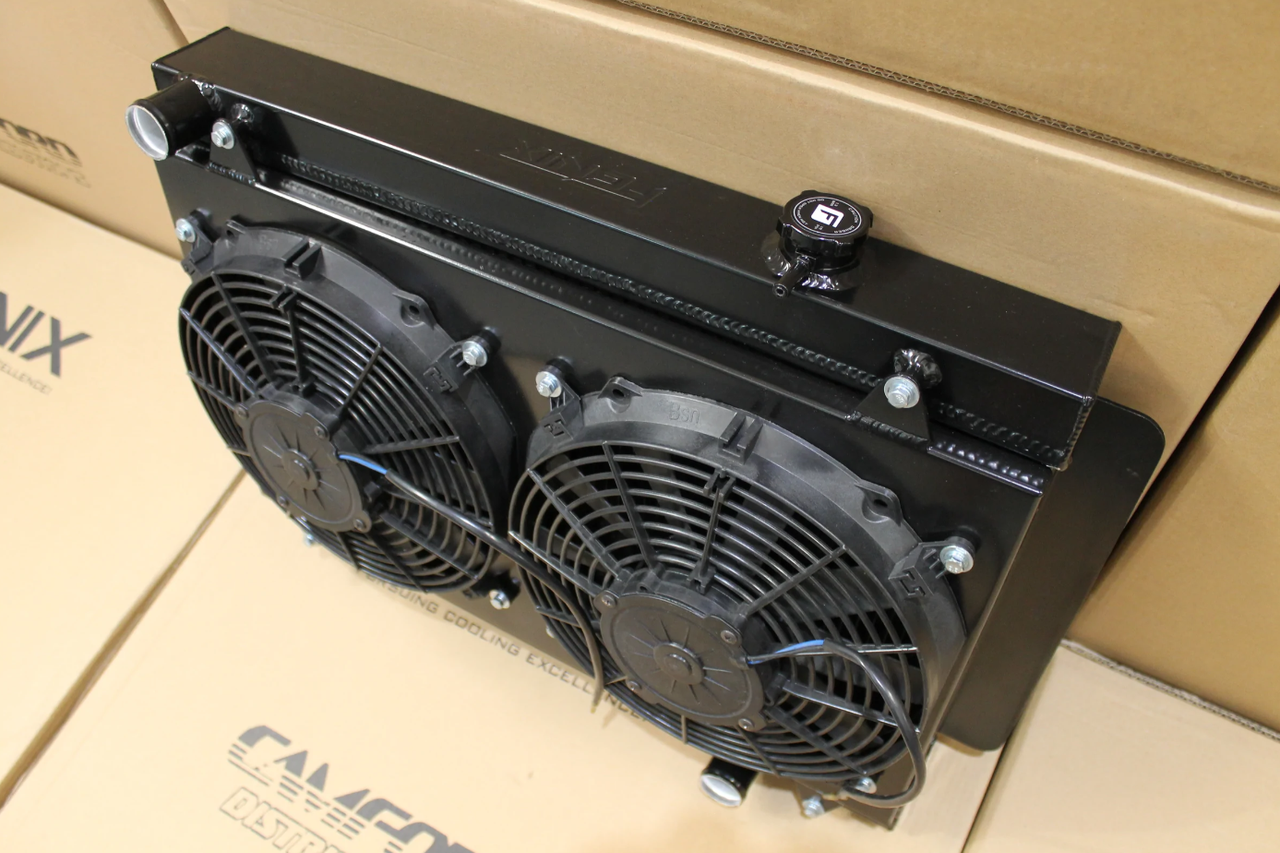

Fenix Holden Kingswood HQ-HZ/Torana LH-LX Chev V8 Alloy Radiator & Fan Shroud Kit

Fenix Holden Kingswood HQ-HZ/Torana LH-LX Chev V8 Full Alloy Performance Radiator & Fan Shroud Kit.

Part numbers and options

Specifications and installation

Fenix Part No: RACE3388W-FA56A, FAN3388-T.

Core Size: 368 x 612 x 56mm.

Fan CFM: 1150CFM (ea).

Vehicle application and product details

Core size: 368 x 612 x 56mm.

Direct replacement for:

Holden Kingswood HG-HX Chev V8 / LS2 Swap

Holden Torana LH-LX Chev V8 / LS2 Swap

Transmission: Manual & Auto

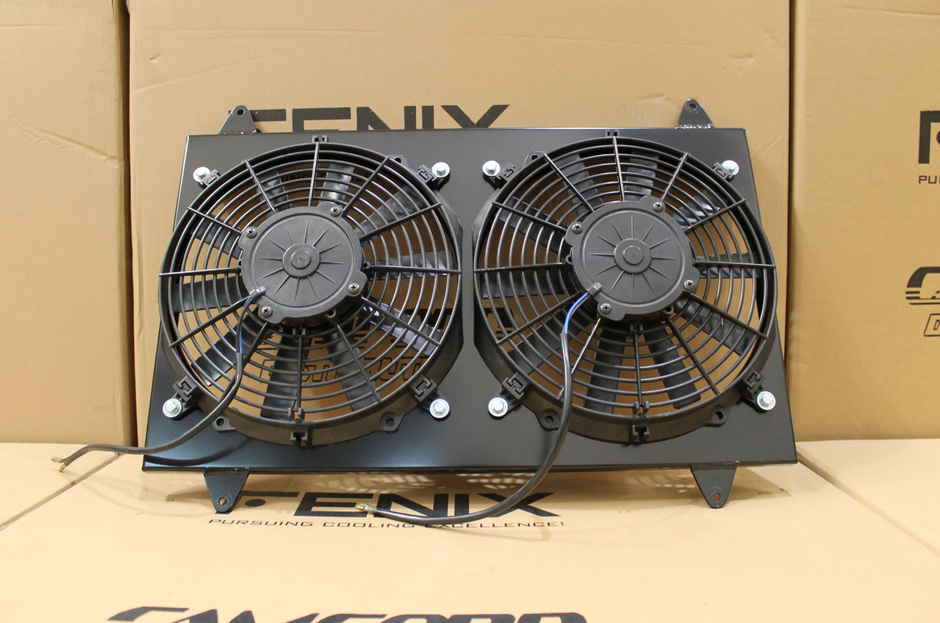

Fan output: 1150 CFM each.

Radiator & Fan Measurements:

Top of cap to bottom of tank - 490mm

Tank to tank - 465mm

Tank thickness - 75mmTank width - 620mm

Total width - 715mm

Total thickness with radiator & fans - 145mm

Inlet/Outlet Size - Both 38mm

Features:

• Full Aluminium construction.

• 1/8” NPT temperature sensor port and hex bung.

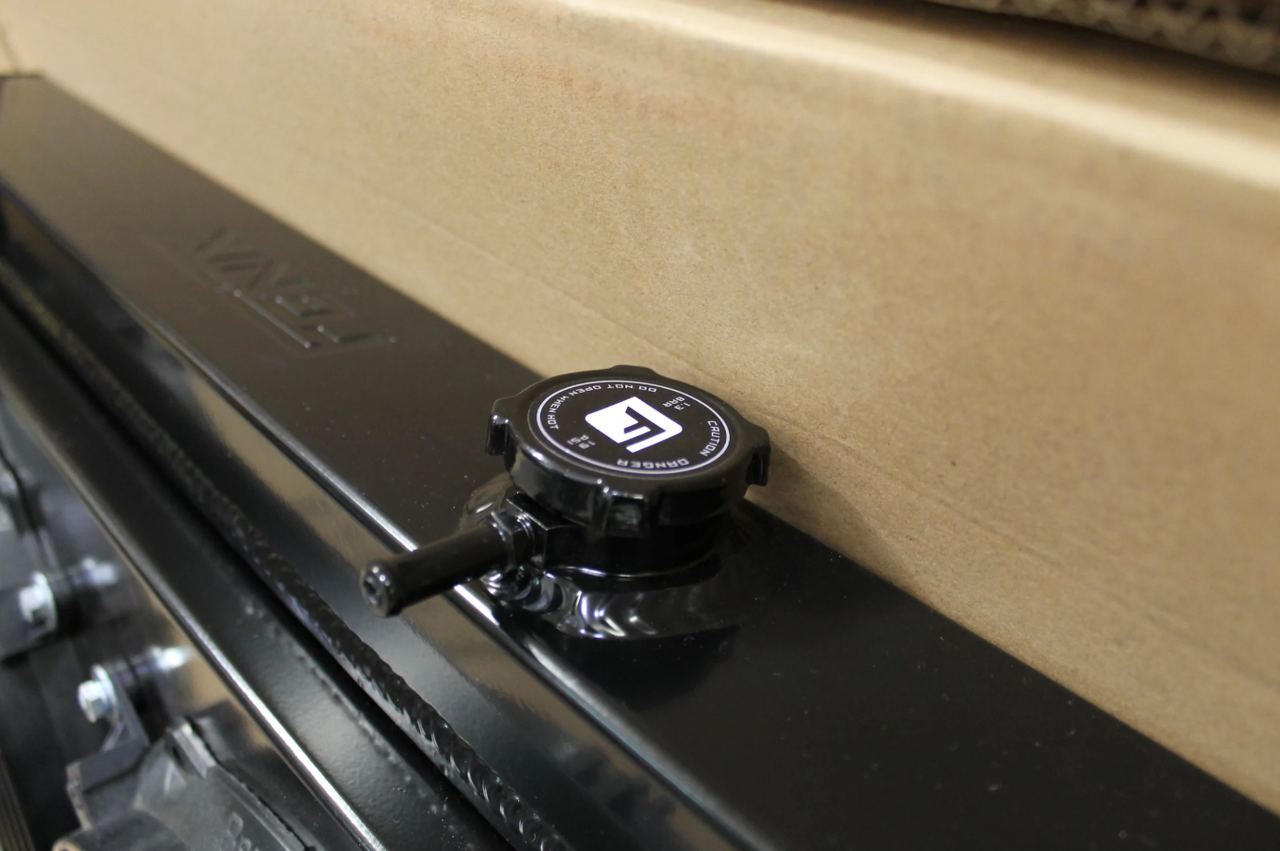

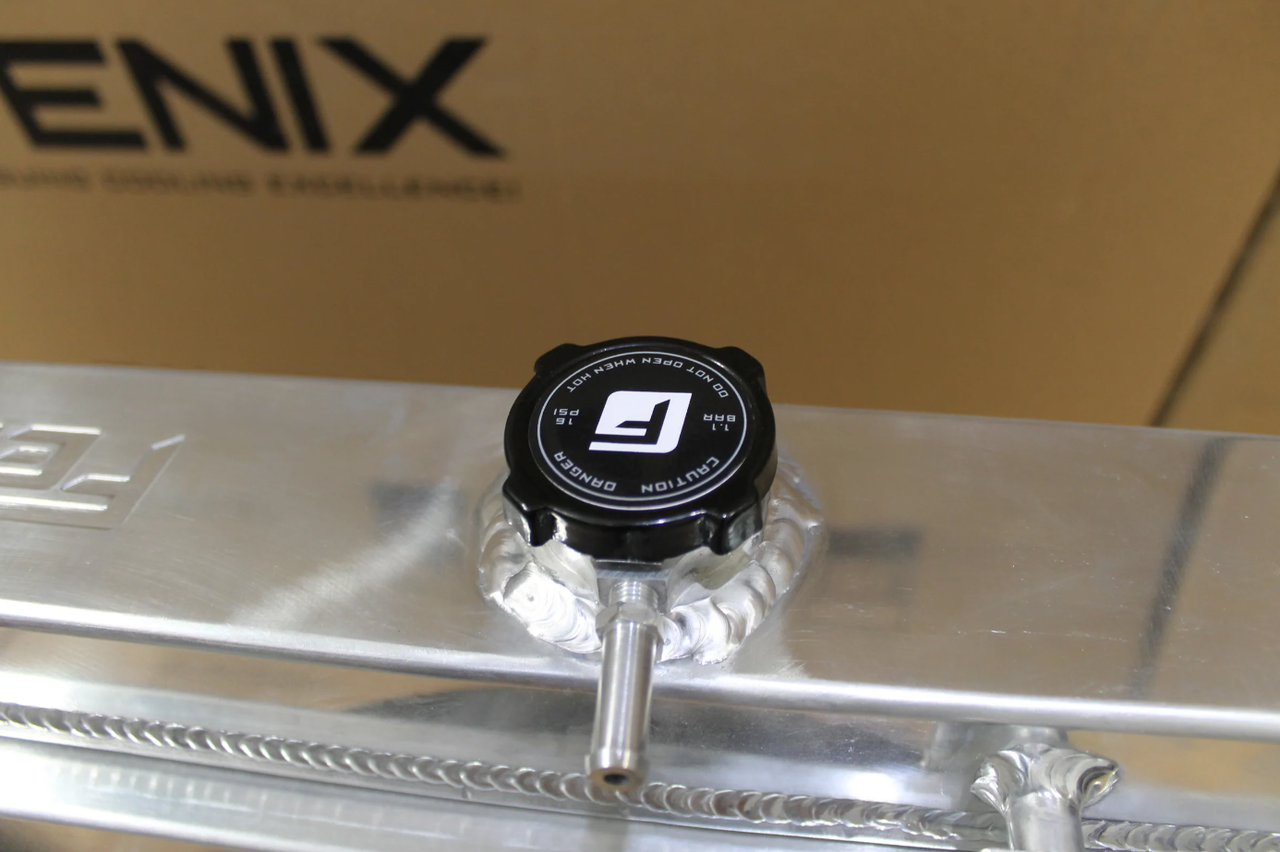

• V2 Fenix radiator cap.

• V2 billet drainage bung.

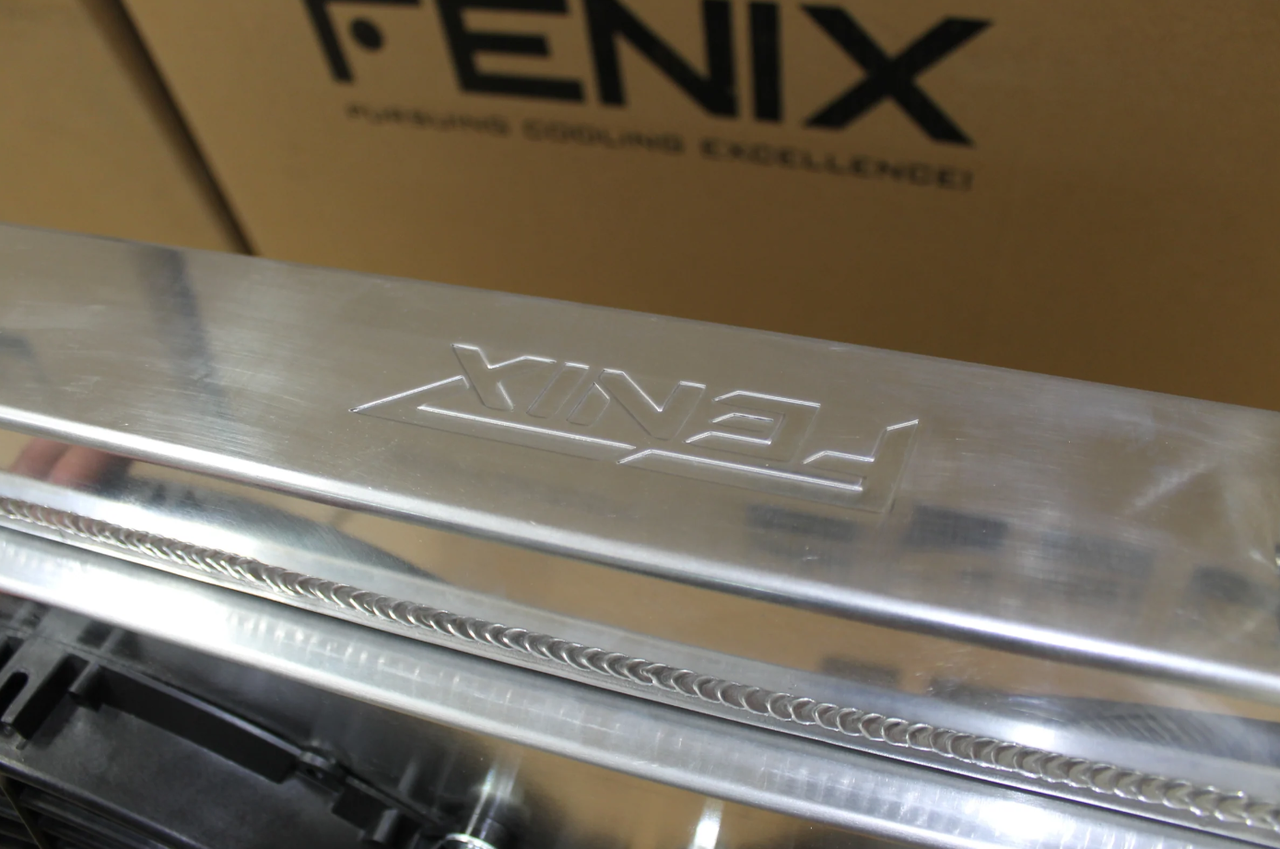

• Embossed Fenix logo on top tank.

NOTE: This kit is designed for use on the Chev v8 but can be used with an LS2 swap. You will need to find custom pipes to suit but it will bolt up and clear everything!

This rad comes with the Auto trans cooler. Fenix does not make a manual specific rad anymore.

If you want to bung the trans ports off (Not recommended) the threads are AN-6.

*Core size is tube and fin area only and does not include tanks or plate under tank.

Check the selected finish, transmission, dimensions and mounting requirements against your vehicle before ordering. Universal and conversion parts may require modification or professional installation.
