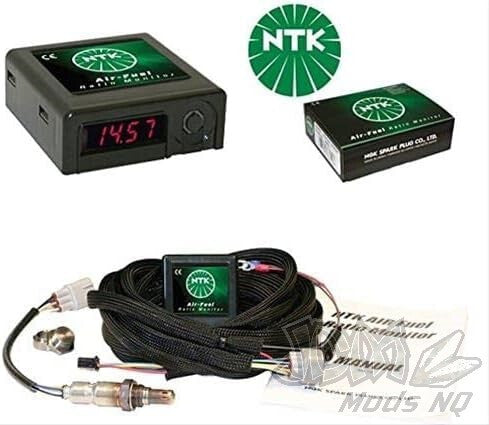

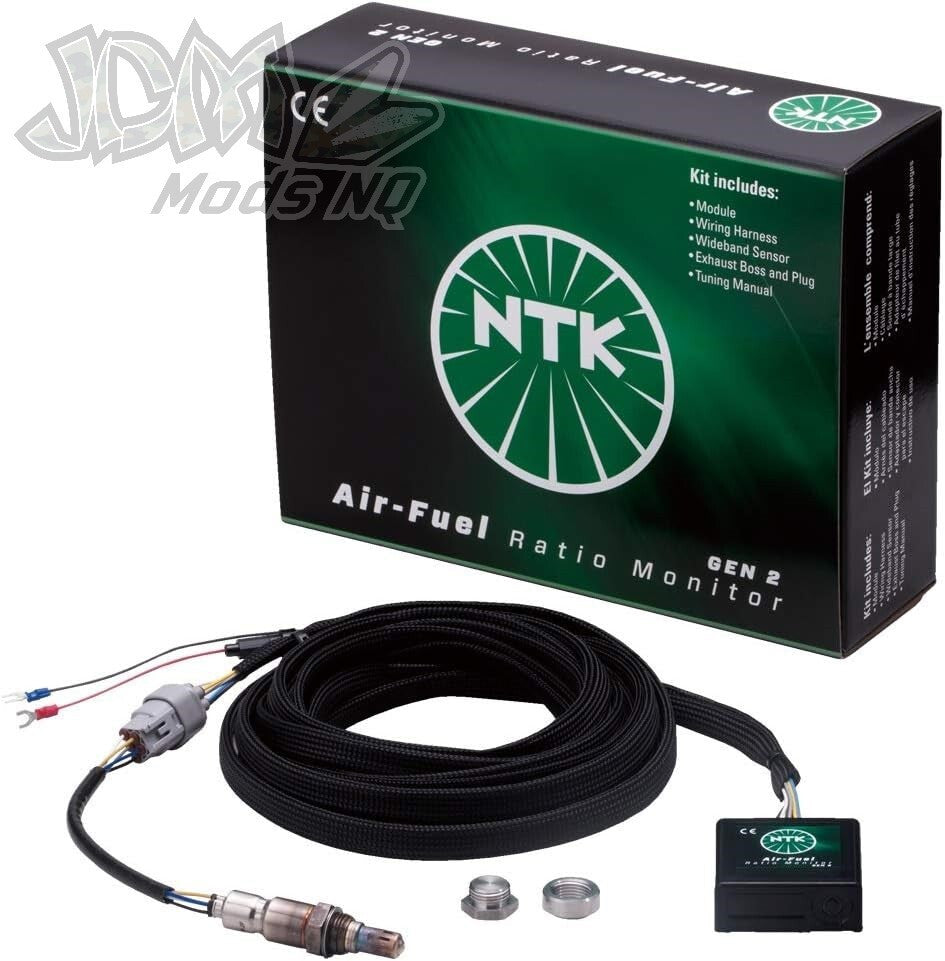

NTK 90067 AFX Air/Fuel Ratio Monitor Kit

NTK AIR-FUEL RATIO MONITOR

The NTK Air-Fuel Ratio Monitor is a tool to measure the air fuel ratio (AFR) produced by carburetted and fuel-injected engines.

Its measurement range is from 9.00 to 20.00 air fuel ratio for unleaded fuels, equating to (0.62 to 1.37 Lambda) and is also compatible with fuels other than unleaded.

The AFRM’s display is designed to show air fuel ratio values based on an unleaded scale with 14.7:1 AFR as the stoichiometric ratio. The monitor will display on an unleaded scale even though the fuel used may have different properties (stoichiometry for methanol is approximately 6.5:1).

The same principle applies to other fuels such as ethanol, propane, CNG, LPG etc. The display will simply read on an unleaded scale. As long as the engine runs between the range of 9.00:1 – 20.00:1 AFR (or 0.62 to 1.37 Lambda), the AFRM will work with almost any fuel type.

Specs:

• LED Display Shows AFR or Lambda (λ)
• Simplified Free Air Calibration
• Reads 9.0-20.0:1 AFR (.062-1.37λ)
• 0-5 Volt Analog Output Signal
• Adjustable Sampling Rate Display Speed
• Dedicated Wide Band Sensor for AFRM
• New Compact Design
