Fenix Holden Kingswood HG-HZ/Torana LH-UC 253/308 V8 Alloy Radiator, Custom Shroud & SPAL Fans | KIT3366-SPAL12-BL

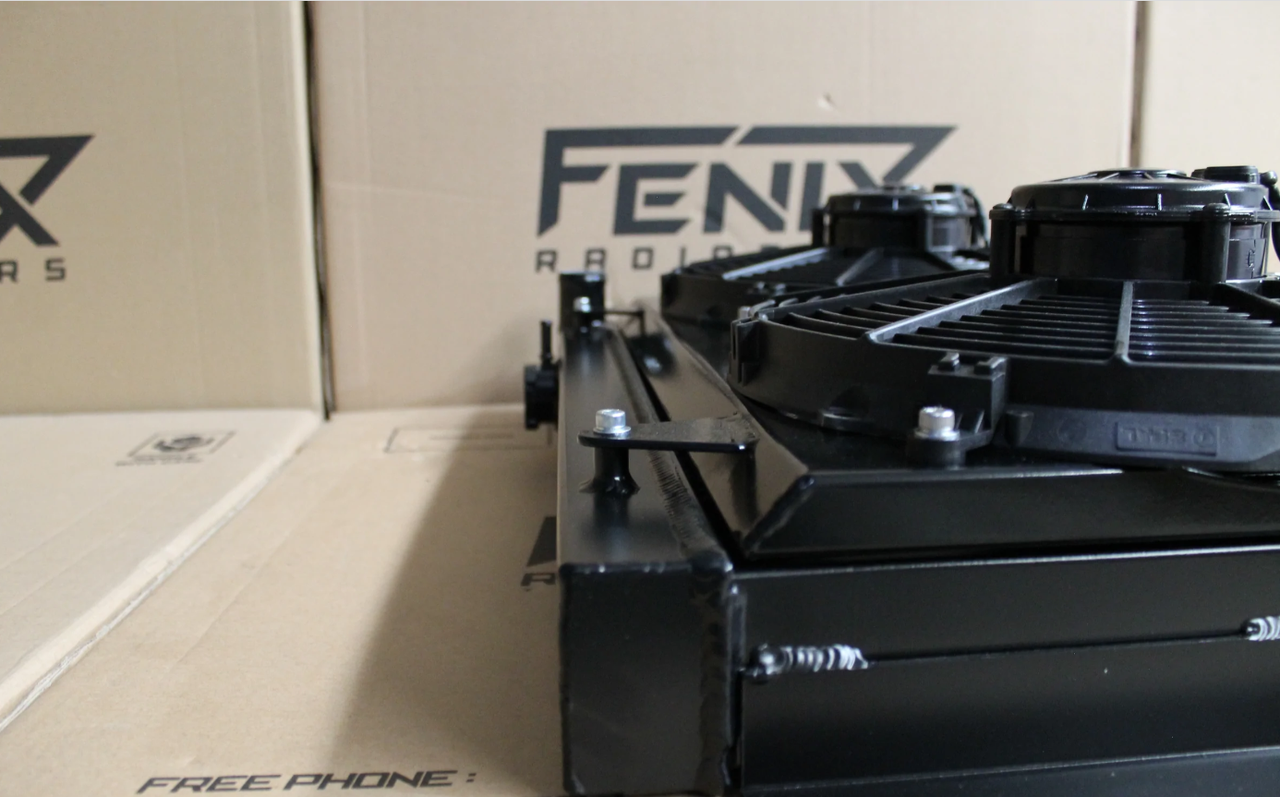

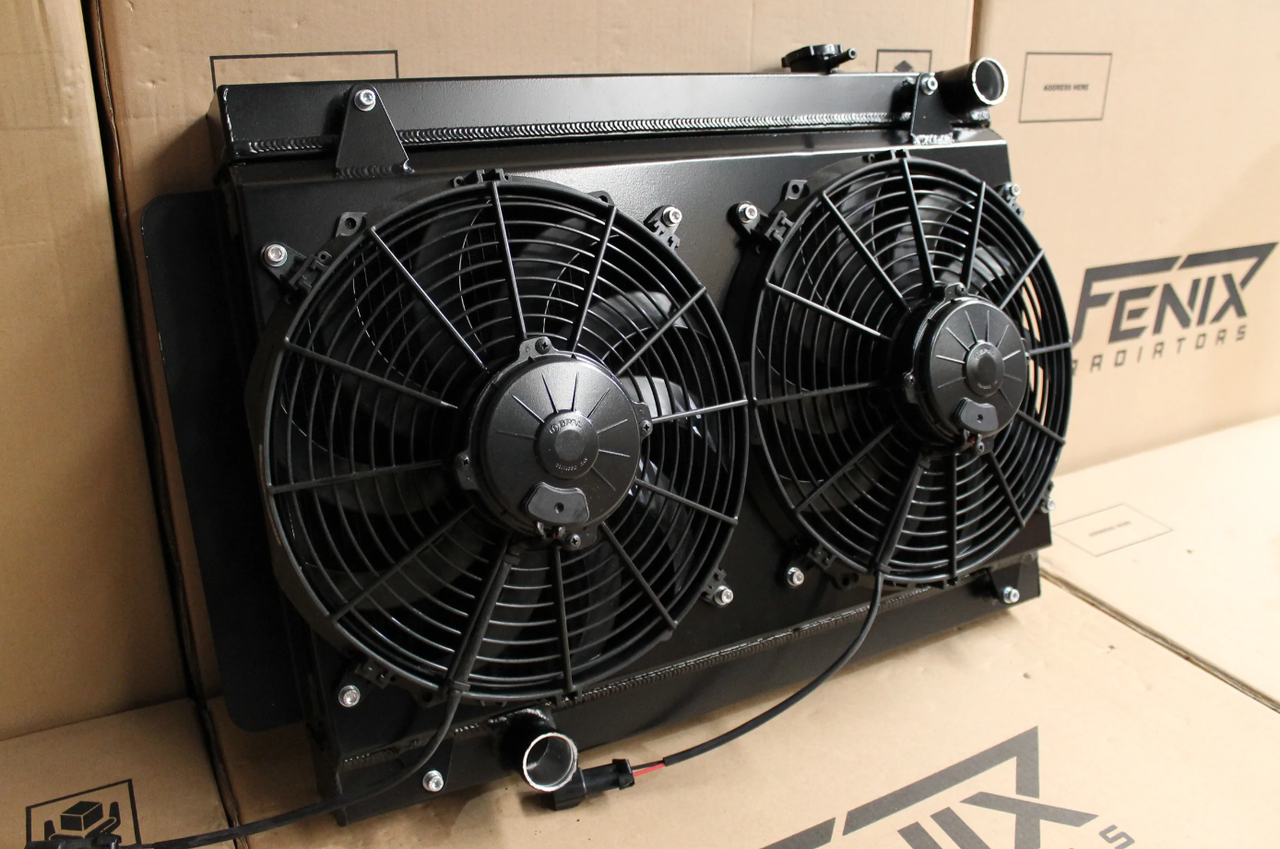

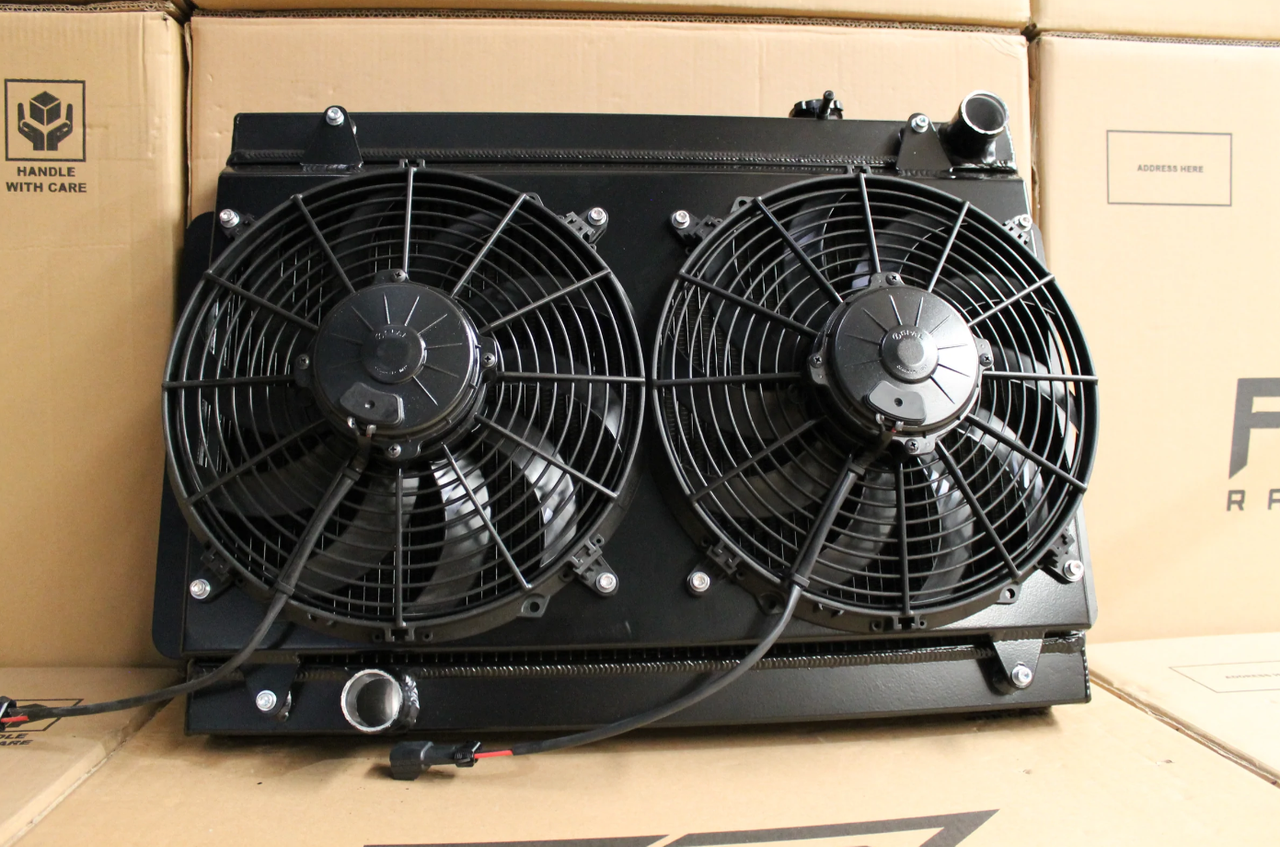

Fenix Holden Kingswood HG-HZ/Torana LH-UC 253/308 V8 Full Alloy Performance Radiator, Custom Shroud & Spal Fans.

Part numbers and options

Specifications and installation

Fenix Part No: RACE3366W-FA56A-BL, FAN3366-SPAL12-BL.

Automatic radiator will be supplied (manual in the photos).

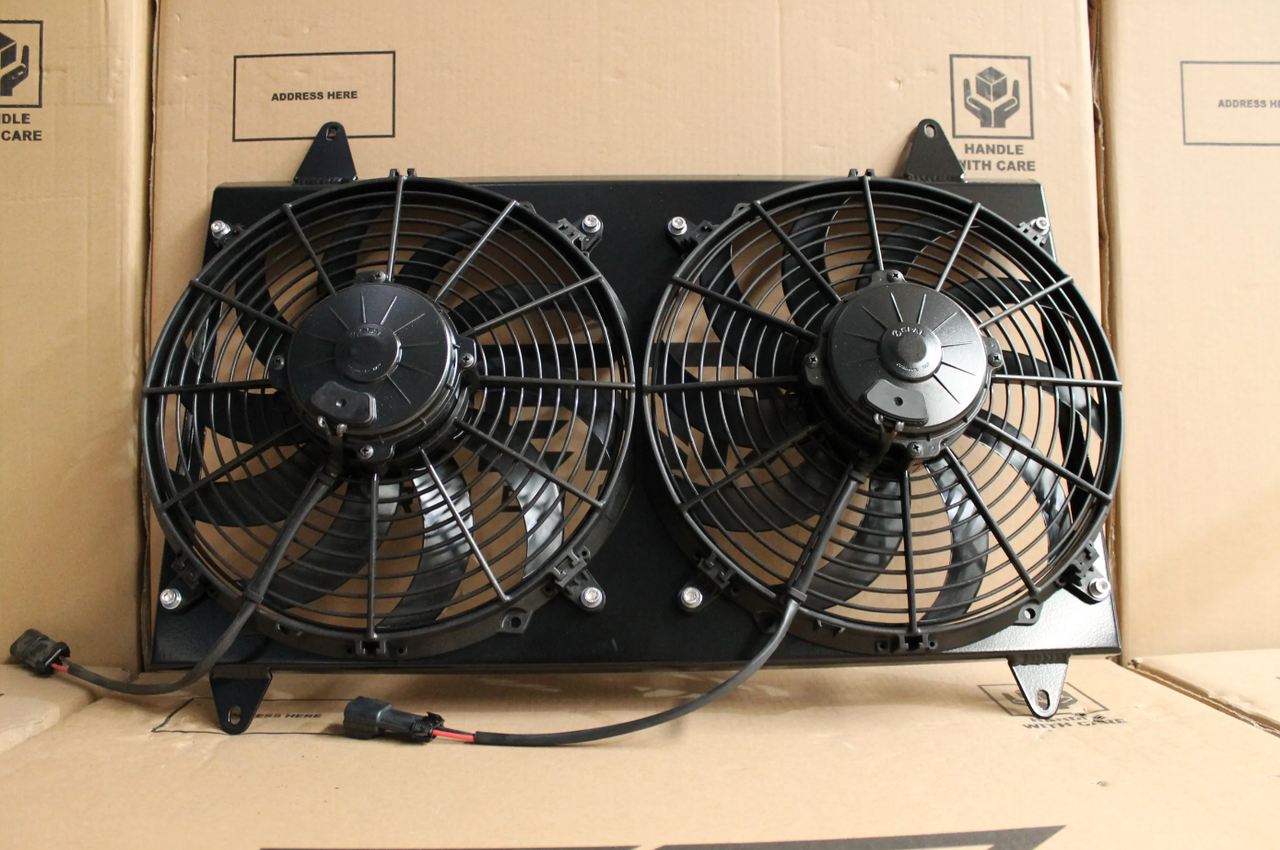

This shroud is built to order, with a lead time of 2 weeks to cover fabrication & powder coating. This shroud utilizes a pair of high output Spal fans pulling a combined 2656CFM.

Fan shroud & radiator has a maximum depth of 185mm (front of radiator to back of fan motor).

Vehicle application and product details

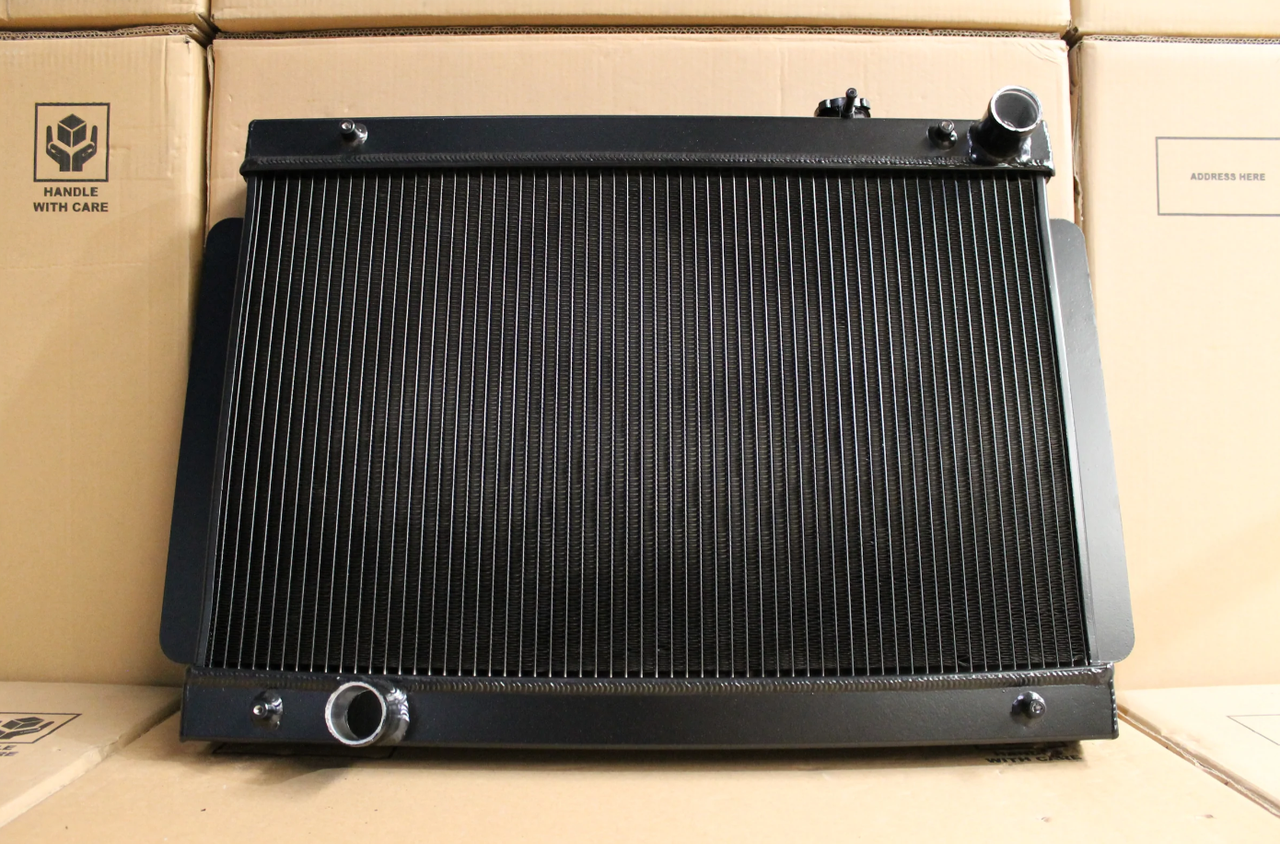

Core size: 368mm x 620mm x 56mm

Direct replacement for:

Holden HG-HQ-HJ-HX-HZ Kingswood & Torana LH-LX-UC

253 – 308 V8

1969 - 1977

Transmission: Manual & Auto

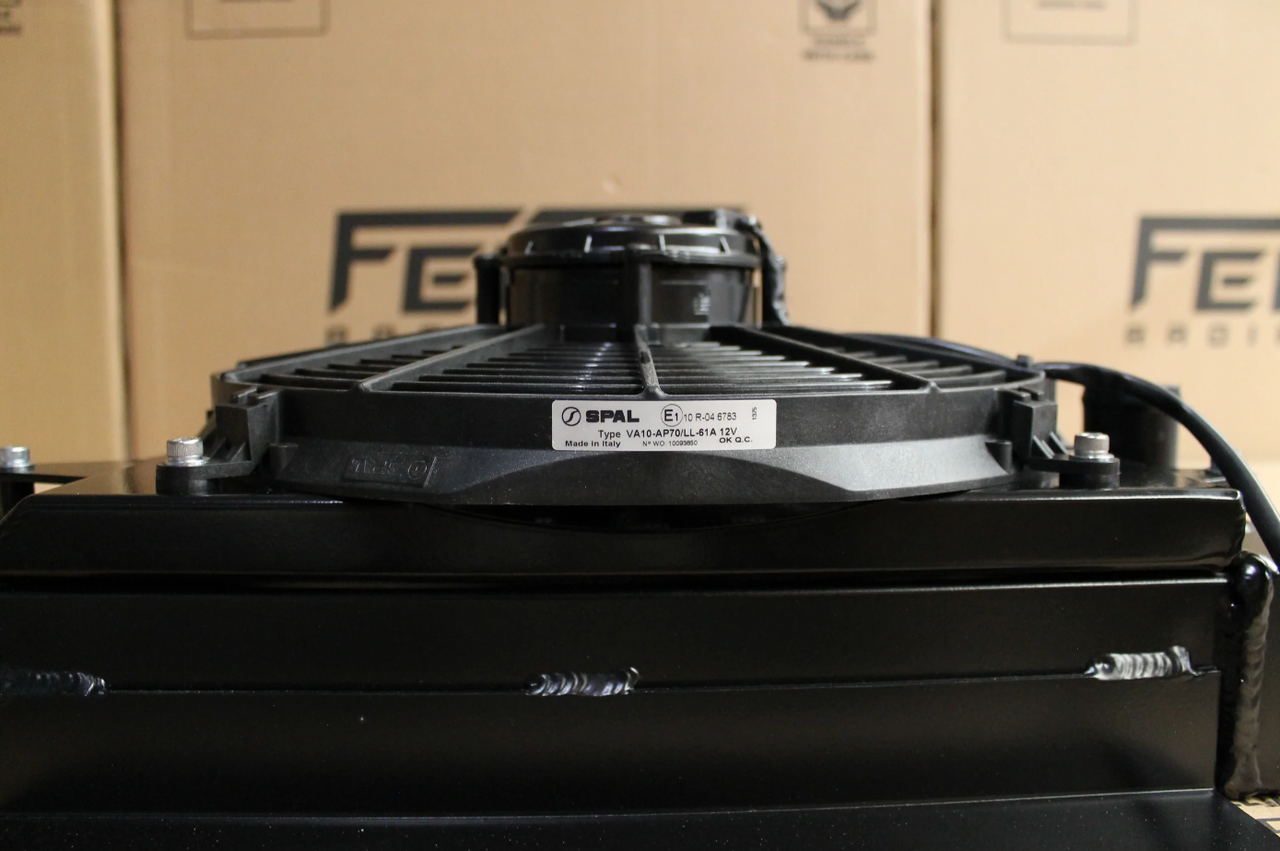

Fan CFM: 1328cfm each

Features:

• Full Aluminium construction.

• 1/8” NPT temperature sensor port and hex bung.

• V2 Fenix radiator cap.

• V2 billet drainage bung.

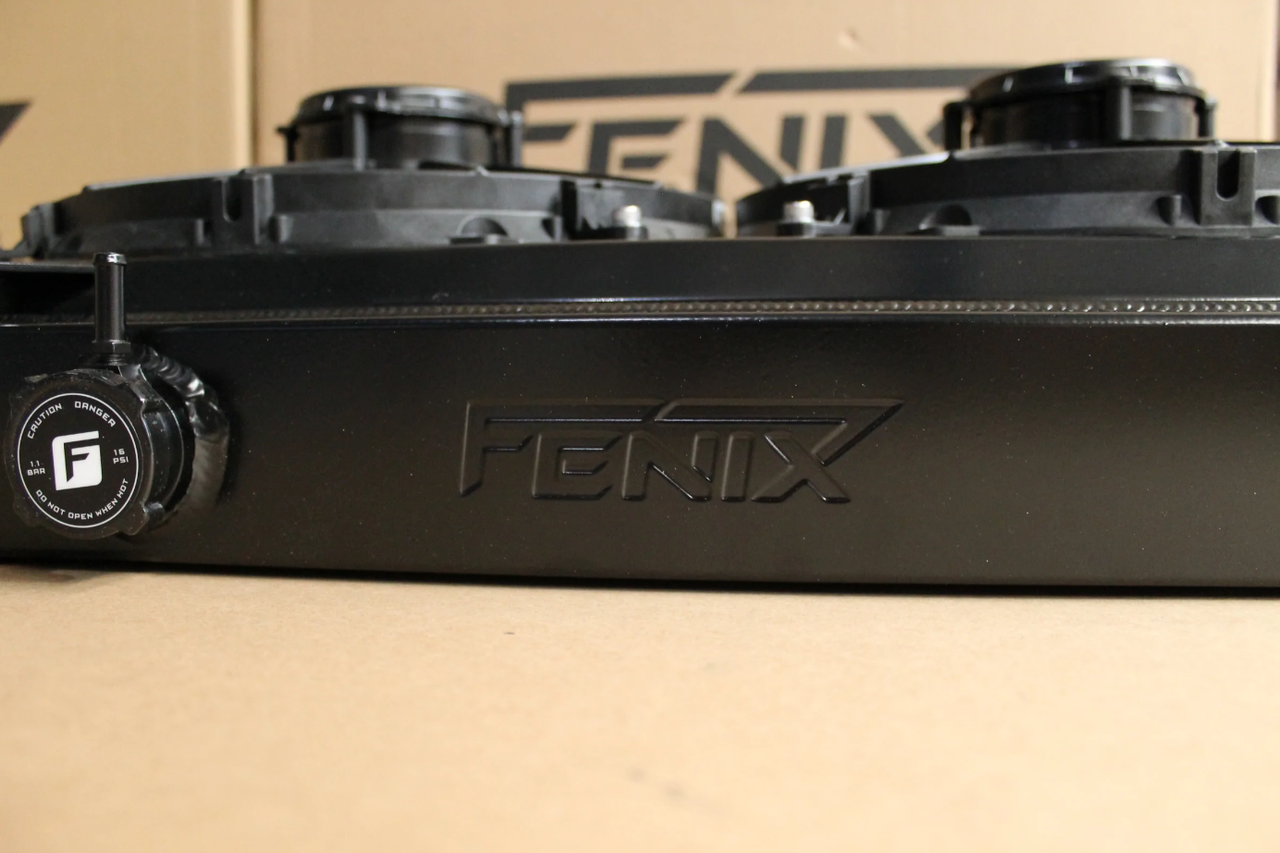

• Embossed Fenix logo on top tank.

NOTE:

This combo can be done in raw finish if the rads are in stock.

This fan shroud is built to order, with a lead time of 1-2 weeks to cover fabrication & powder coating. This shroud utilizes a pair of high output Spal fans pulling a combined 2656CFM.

Fan shroud & radiator has a maximum depth of 185mm (front of radiator to back of fan motor).

This rad comes with the Auto trans cooler. Fenix does not make a manual specific rad anymore.

If you want to bung the trans ports off (Not recommended) the threads are AN-6.

*Core size is tube and fin area only and does not include tanks or plate under tank.

Check the selected finish, transmission, dimensions and mounting requirements against your vehicle before ordering. Universal and conversion parts may require modification or professional installation.
