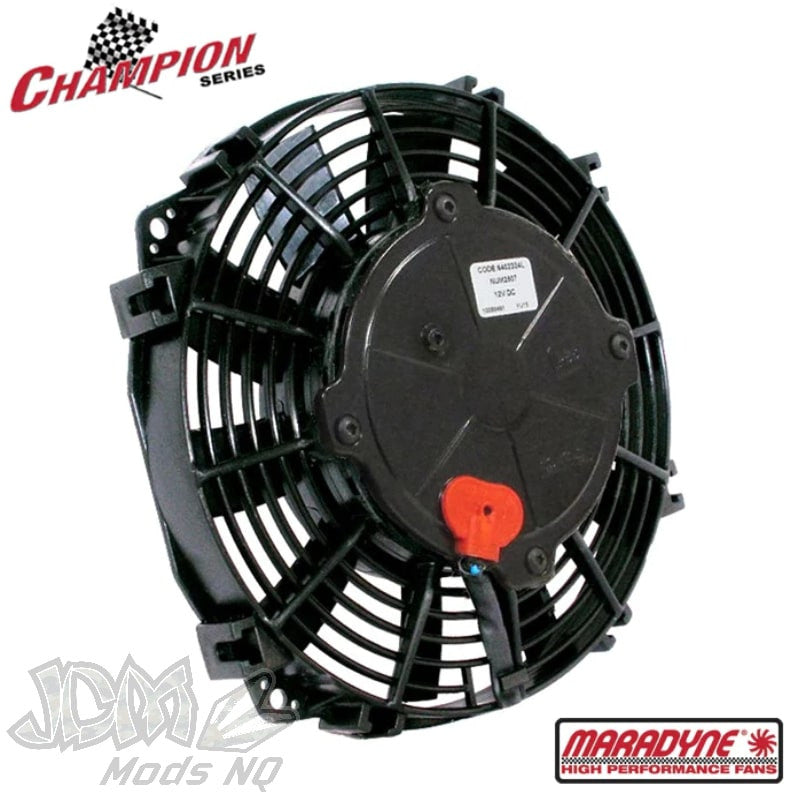

Maradyne 9" Champion Series 12v Fan M093K

• Lowest profile high performance reversibles on the market
• Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
• Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
• All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

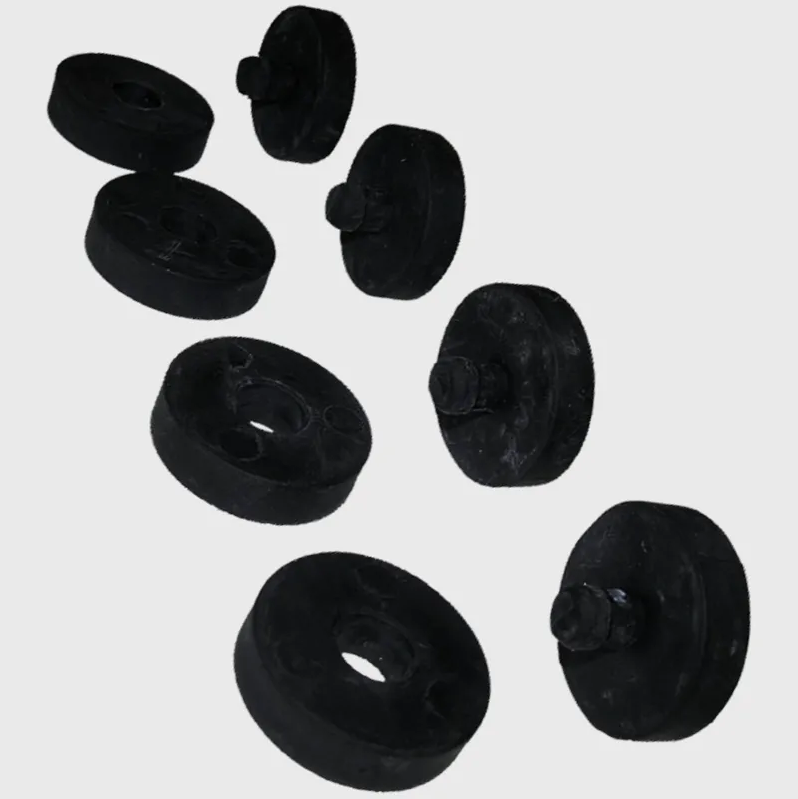

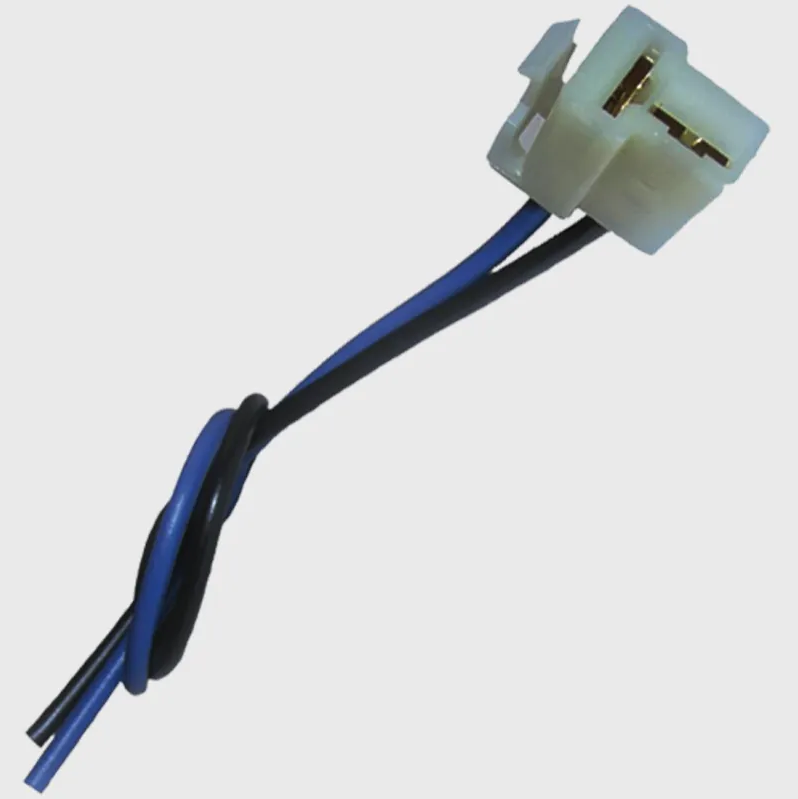

• Includes locking mating pigtail MFA113 connector and rubber spacers MFA112 for proper spacing off of heat exchanger

PART # M093K

FAN SIZE 9" Low Profile

BLADE S-Blade

DIRECTION Reversible

MOTOR LL 130W Heavy Duty

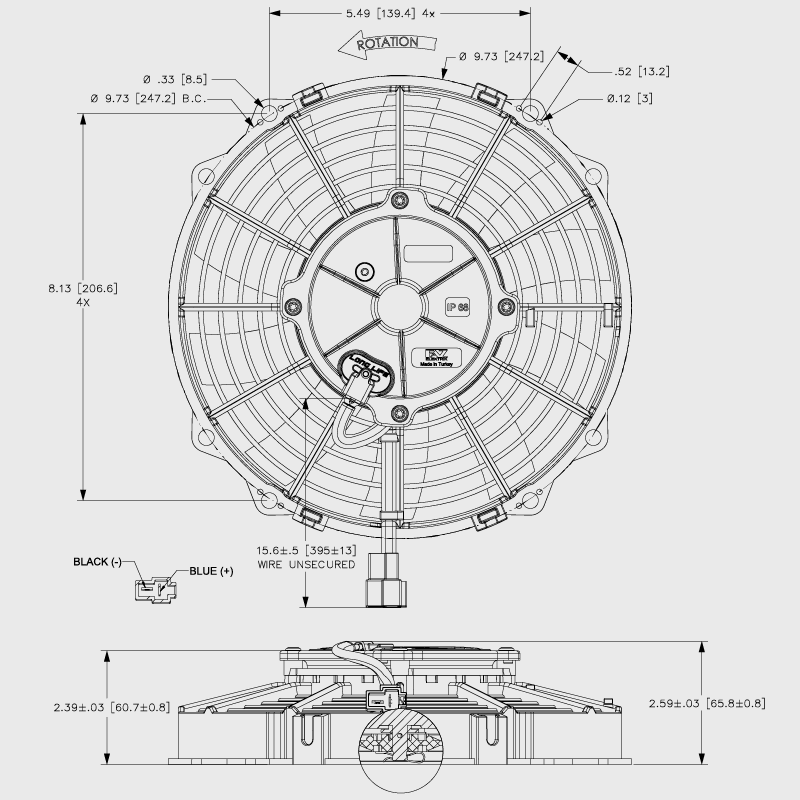

DEPTH 2.62"

CFM @ 0" 790

AMPS 7.7
