FENIX: RACE3366-FA56A-BL, FAN3366-SPAL12
Core size: 368mm x 620mm x 56mm
Direct replacement for:
Holden HG-HQ-HJ-HX-HZ Kingswood & Torana LH-LX-UC
253 – 308 V8
1969 - 1977
Transmission: Manual & Auto
Fan CFM: 1328cfm each
Features:
• Full Aluminium construction.
• 1/8” NPT temperature sensor port and hex bung.
• V2 Fenix radiator cap.
• V2 billet drainage bung.

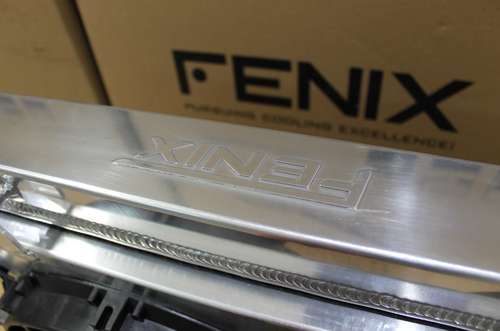

• Embossed Fenix logo on top tank.
NOTE:
This combo can be done in raw finish if the rads are in stock.
This fan shroud is built to order, with a lead time of 1-2 weeks to cover fabrication & powder coating. This shroud utilizes a pair of high output Spal fans pulling a combined 2656CFM.
Fan shroud & radiator has a maximum depth of 185mm (front of radiator to back of fan motor).

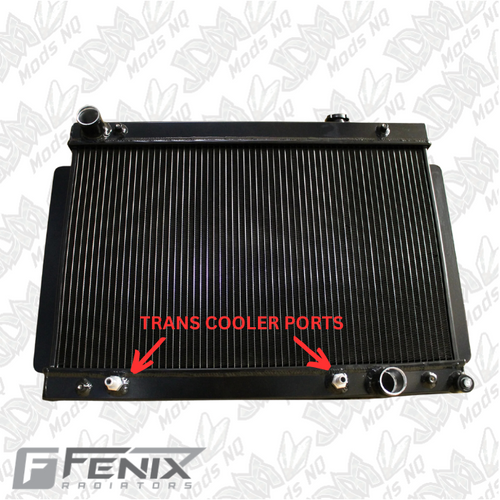

This rad comes with the Auto trans cooler. Fenix does not make a manual specific rad anymore.
If you want to bung the trans ports off (Not recommended) the threads are AN-6.
Upgrade your old, stock radiator with a Fenix Performance alloy radiator. Designed with performance and reliability in mind, we find the weak points of OEM radiators and eliminate them, while offering a factory fit and an increased cooling efficiency of up to 30%.
Partner your Fenix Performance Radiator with the optional Fan & Shroud for the ultimate cooling combo.
*Core size is tube and fin area only and does not include tanks or plate under tank.
