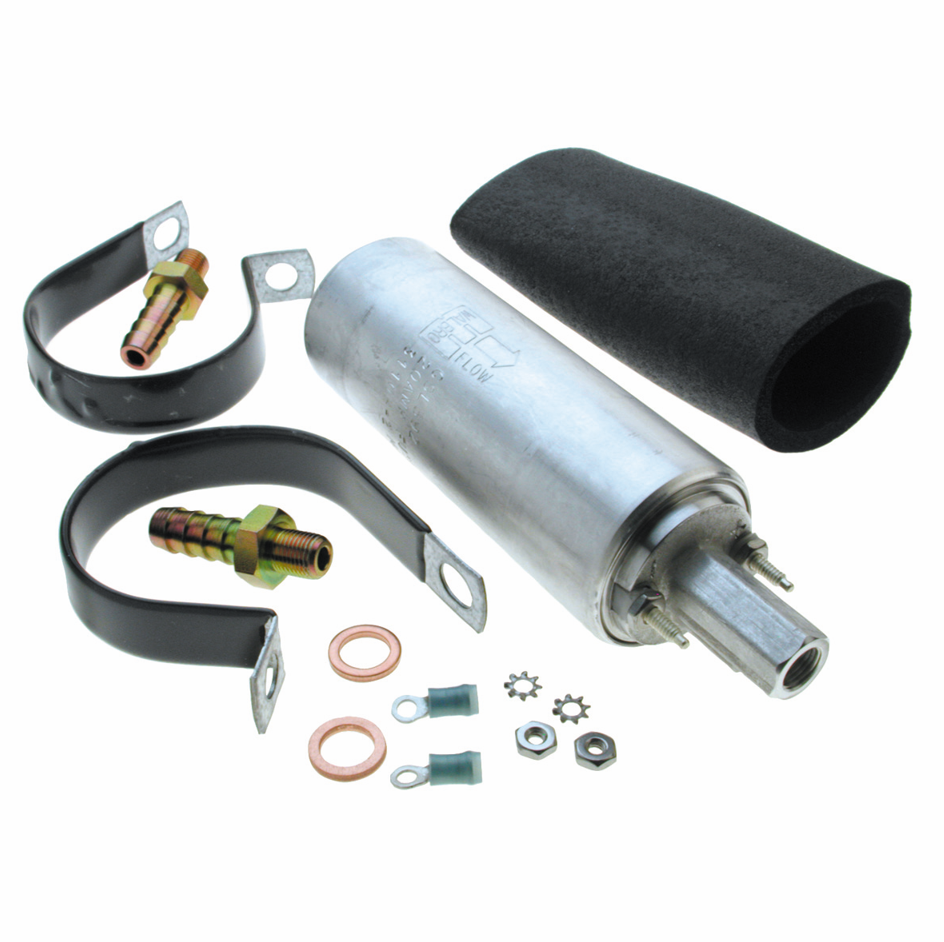

Walbro inline fuel pumps are ideal universal fuel pump replacements and upgrades for:
Vehicles with faulty inline fuel pumps
Upgrades to EFI from mechanical fuel pumps
Other Vehicles where higher fuel flow is necessary and an in-tank pump is not required.
Note! This pump should never be operated without a fuel filter between the tank and the pump. This pre-filter should be 20- to 40-microns. Additionally, almost all applications require a 10-micron post-filter between the fuel pump and the fuel rail. Putting just a 10-micron filter before the pump is not recommended.
Features:
- OE-proven second generation
- Fits most EFI applications including turbo and supercharged
- Variety of pressures and flows available, including high pressure performance
- All metal shell including inlet and outlet
- 10mm x 1mm threaded inlet and outlet accept a variety of fittings
- Lightweight, compact design
- QS9000 certified
Pump Description:
- Fuel: GAS
- Horsepower: 300 - 350

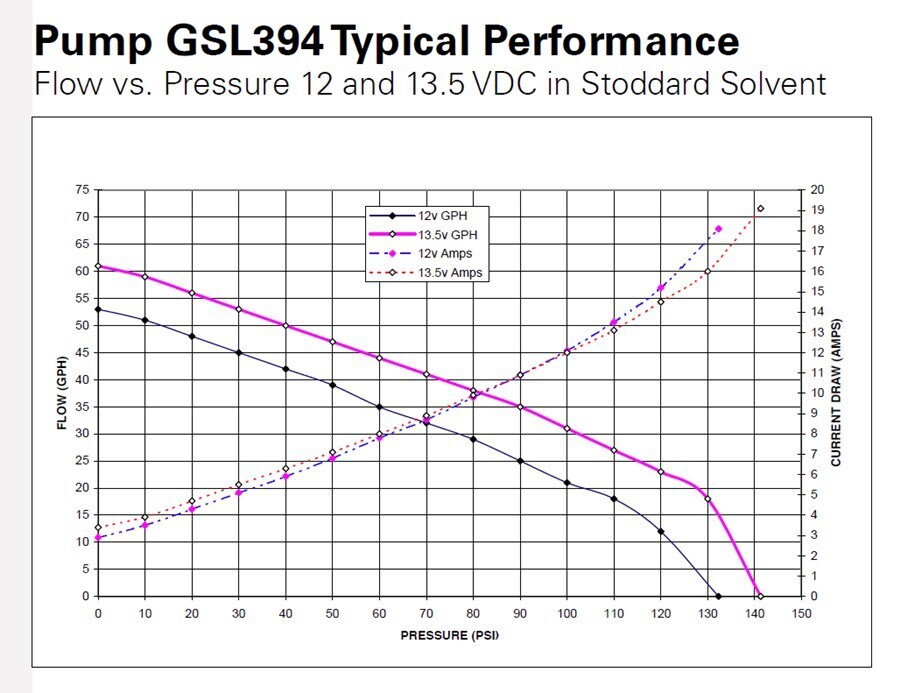

- Flow @ 276 kPa: 155 lph - 190 lph
- Flow @ 40 psi: 50 gph
- Max System Pressure (psi): 87
- Max System Pressure (kPa): 600
- Inlet Diameter: 43mm
- Pump Type: External Pump Only
- Inlet Configuration: Externally mounted, interchangeable inlet and outlet fittings
2 YEAR
