GReddy professional-grade surge tank for 2JZ with throttle flange and air outlet that can be set to suit your vehicle.
Product Features:
The throttle flange and air outlet are not welded so that they can be set according to the car. The tank is 3mm thick, and the press line increases rigidity and supports high boost. The funnel provides a streamlining effect and increases flow rate to maximize intake efficiency.
Specially designed O-rings are used to seal each part, and specially designed O-rings are used to prevent them from falling off during assembly, and they are made of a fluorine-based material that is highly resistant to gasoline.

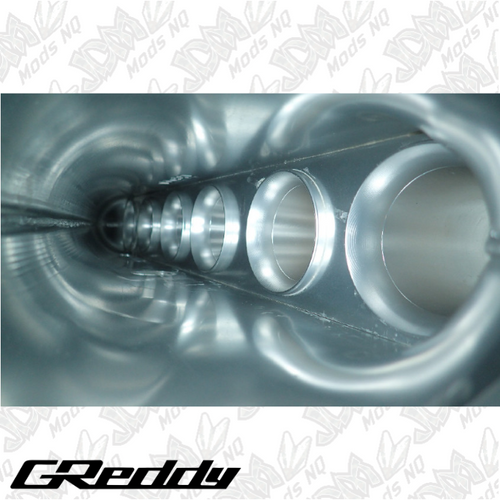

The funnel shape inside the tank maximizes intake efficiency by streamlining the flow and increasing the flow rate. (Funnel height: 20mm).
Butterfly diameter Φ90
Inner diameter INΦ96-OUTΦ90
Outer diameter (hose diameter) Φ100
OEM throttle position sensor can be installed
The throttle shaft has a thin shape that reduces intake resistance and increases the opening area.
Specification:
Kit configuration: surge tank, throttle, fuel delivery tube
- Tank, port, and head flange are pre-welded
- Throttle flange for welding and throttle included
- Collector tank capacity: 4.02 liters (200% of standard).
- Intake pipe length: 130 mm. Throttle hose diameter: φ100,
butterfly diameter: φ90
- Delivery tube for top feed injector included.
Compatible models:
Vehicles equipped with 2JZ engines
Engine type: 2JZ-GTE
Please Note: These intake manifolds may need to be ordered in from GReddy Japan. Please contact us for availability and delivery ETA's.
