Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
- 7 psi: TS-0622-8072
- 10 psi: TS-0622-8102
- 12 psi: TS-0622-8122
- 14psi Bolt On Suit Turbonetics / Precision NX2 Turbo Upgrade:TS-0622-1003
Features
- Proprietary Silicon Nomex Diaphragm
- Choice of Springs from 3psi to 26psi (Optional)
- High Grade Billet Aluminium Construction
- Stainless Steel Rods and Clevis
- Turbosmart Unique Locking Collar System
Notes
7 psi Version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the Turbonetics / Precision NX2 Turbo Upgrade as fitted to the EcoBoost Mustang 2.3Litre.

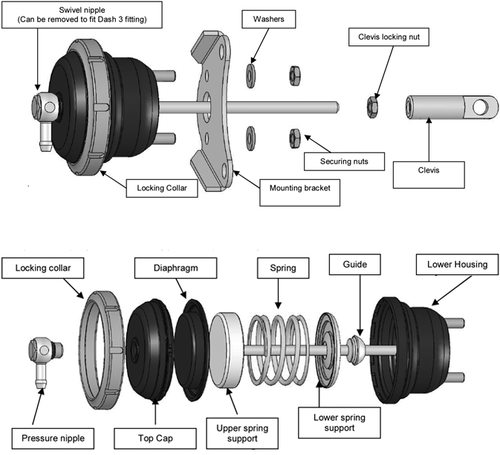

Supplied With:
- IWG75 Wastegate Actuator
- Vehicle Specific Mounting Bracket
- Springs Pre-Fitted as per Description
- Required Fasteners & Swivel Hose Barb
Fitment:
- Ford Mustang ECO Boost FM 2015 – 2021
