The GenV RacePort ‘Sensor Cap’ allows you to monitor blow-off valve (BOV) position for diagnostic or tuning purposes, a truly unique solution and first of it’s kind on the market.
If you are using BOV for traction/torque control, knowing how far it’s open is paramount to providing insight to further optimise the calibration process. Aside from a calibration benefit, if you have any doubt that the BOV is not staying closed when it should be, check the logs, this has never been easier with the Turbosmart GenV Race Port ‘Sensor Cap’
SUPPLIED WITH:
GenV Raceport 50mm BOV
1/8 NPT Vacuum fittings
Sensor Cap & HE Sensor
V-band Assembly
Blue Spring Rated -18 to -14 InHg (installed).
Turbosmart Decal
Does not come with weld on flange.
FITMENT:
Vacuum fittings profiled alloy weld flange, V-band assembly, and Blue Spring Rated -18 to -14 InHg (installed)
Billet 6000 series aluminium construction
Quick release v-band collar for ease of installation and removal
2.0" Inlet flows over 330 CFM
MILSPEC hard anodized valve guide and stem
Hi Temp Silicon Nomex diaphragm
Positive sealing valve seat
Twin 1/8"NPT pressure ports for convenient positioning
Collar secured cap for quick spring changes
4inHg to 26inHg activation range

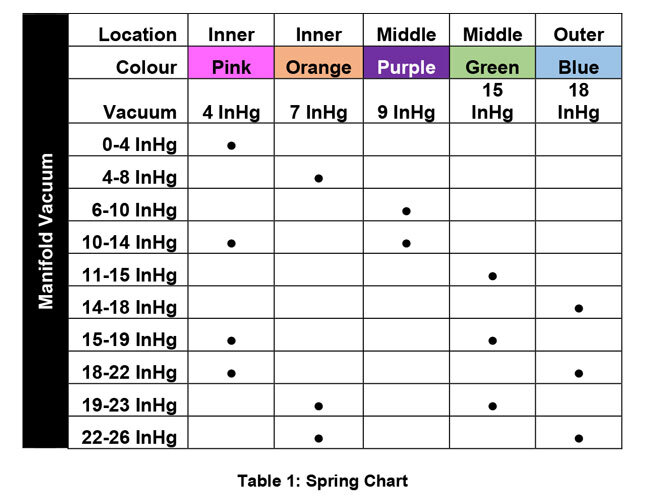

5 user configurable corrosion resistant springs available
Valve position sensor option
Designed, manufactured and validated in-house at Turbosmart HQ
